GP2Y0E0 Infrared Distance Distance Sensor
$4.5000
In stock
SKU
SEN-05-020
Volume discounts:
- +25 4 % $4.3300
- +100 6 % $4.2400
- +300 8 % $4.1500
- +500 10 % $4.0700
- +1000 12 % $3.9800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
17 Key Infrared Remote Control Previous

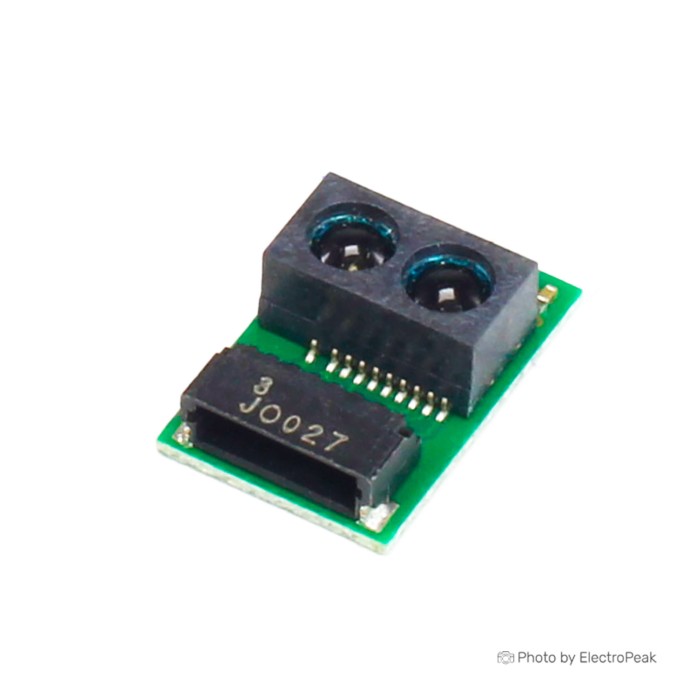

GP2Y0E03 Infrared Distance Sensor Module is a distance sensing module for measuring short-range distances with I2C output. It supports infrared ranging and also provides an analog output type. The module is designed for applications that require distance detection and proximity sensing. It uses a CMOS integrated combination with an image sensor and infrared LED. The measuring distance range is 4 to 50 cm.
Features of GP2Y0E03 Infrared Distance Sensor Module
- I2C output
- Analog output type
- High precision measurement
- CMOS integrated combination
- Image sensor and infrared LED
- Proximity sensing support
Specifications of GP2Y0E03 Infrared Distance Sensor Module
- Working voltage: 2.7 to 5V DC
- Average current consumption: 12 mA
- Measuring distance range: 4 to 50 cm
- Output type: I2C, analog output
- Size: 16.7 x 11 x 5.2 mm
- Weight: 3.5 g
- CMOS integrated combination
- Image sensor and infrared LED
How to Use GP2Y0E03 Infrared Distance Sensor Module
- Connect the module to a suitable power source within the specified voltage range.
- Read the distance data from the I2C or analog output.
- Use the measured values in your control or sensing application.
More Info
- Suitable for short-range distance measurement.
- Can be used as a proximity sensor.
- Includes both digital and analog output options.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2.7 to 5 V DC |
| Operating Current (mA) | 12 mA |
| Operating Temp (°C) | -10 to 60 |
| Dimensions (mm) | 16.7 x 11 x 5.2 mm |
| Output Type | I2C |
| Detection Distance | 4 cm to 50 cm |
| Sensing Method | Infrared (IR) |
| Weight (g) | 3.5 |
| Chipset | GP2Y0E03 |
| Sensor Model | GP2Y0E03 |
