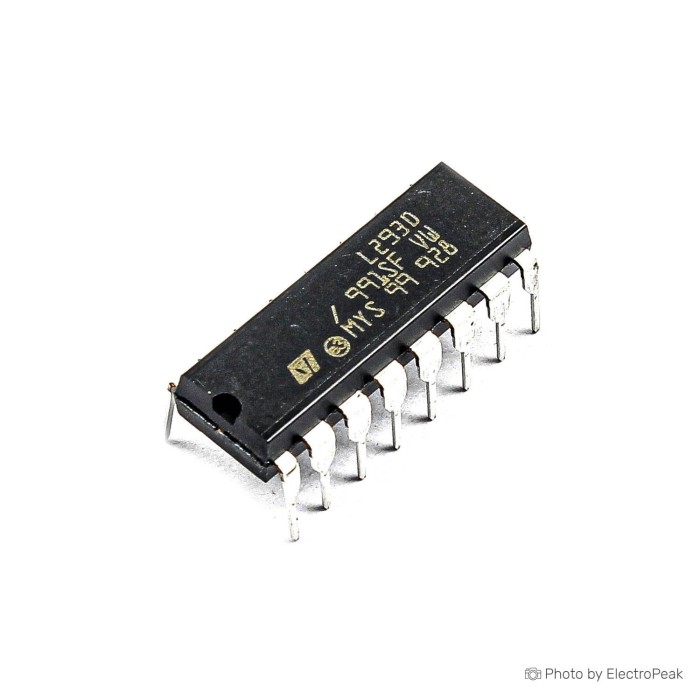

L293D Driver IC (DIP)
$0.1800
In stock
SKU
ELC-01-007
Volume discounts:
- +100 6 % $0.1700
- +1000 11 % $0.1600
L293D Driver IC (DIP) is available to buy in increments of 2
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ATMEGA2560-16AU IC Microcontroller Previous
The L293D Driver IC (DIP) is a high-current half-H driver IC designed for inductive loads and other high-voltage or high-current loads in positive supply applications. It is suitable for relays, solenoids, DC motors, and bipolar stepper motors. This four-channel driver includes internal totem-pole outputs with Darlington transistor sink and source stages. The driver pairs are available through 1,2EN and 3,4EN for channel control.
Features of L293D Driver IC (DIP) - 16-Pin, 4.5V-36V
- High-current half-H driver
- Four-channel driver
- Internal totem-pole outputs
- Darlington sink and source stages
- Paired driver enable control
Specifications of L293D Driver IC (DIP) - 16-Pin, 4.5V-36V
- Package: DIP
- Pin count: 16
- Dimensions: 6.35 x 19.80 mm
- Supply voltage: 4.5 V to 36 V
- Separate logic input supply
- Output current: 600mA per channel
- Peak output current: 1.2A per channel
- Maximum operating temperature: +150 °C
- Internal clamp diodes
How to Use L293D Driver IC (DIP) - 16-Pin, 4.5V-36V
- Connect the supply voltage within the specified range.
- Apply separate logic input supply for control signals.
- Use the enable pins 1,2EN or 3,4EN to control paired drivers.
- Connect the load to the output channels.
More Info
- Designed for relays, solenoids, DC motors, and bipolar stepper motors.
- Can drive small and medium motors.
- Can control a set of two motors simultaneously.
- Includes overprotection protection.
