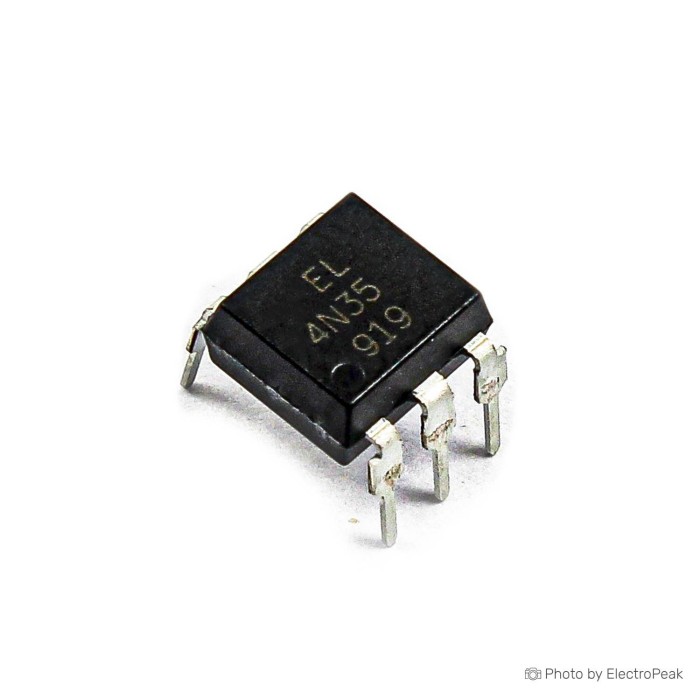

EL4N35 4N35 Optocoupler (DIP6)

EL4N35 4N35 Optocoupler is an optocoupler integrated circuit for optical signal transfer between two isolated circuits. It uses an infrared emitter diode and a phototransistor in a single package. This optoisolator helps separate circuits without ohmic contact. It is a DIP6 package component with standard electronic isolation characteristics. EL4N35 4N35 Optocoupler is suitable for circuit designs that require optical coupling and signal isolation.

Features of EL4N35 4N35 Optocoupler - DIP6, 5000Vrms

• Optical circuit isolation
• Infrared emitter diode
• Phototransistor output
• DIP6 package
• High isolation voltage

Specifications of EL4N35 4N35 Optocoupler - DIP6, 5000Vrms

• Test isolation voltage: 5000 VRMS
• Input/output coupling capacitance: < 0.5 pF
• Reverse voltage: 6V
• Current: 50mA
• Surge current: 1A
• Power: 70mW
• Installation type: straight plug

How to Use EL4N35 4N35 Optocoupler - DIP6, 5000Vrms

1. Install the component in a DIP6-compatible circuit.
2. Connect the input side for optical signal transfer.
3. Use the output side for isolated signal handling.

More Info

• Also known as an optoisolator.
• Separates two circuits optically.
• Built around an infrared emitter diode and a phototransistor.
