HY23135 Touch Switch Module for Metal Desk Lamp 12-24V 100W
$7.5000
In stock
SKU
SEN-25-026
Volume discounts:
- +25 4 % $7.2000
- +50 6 % $7.0500
- +100 8 % $6.9000
- +300 10 % $6.7400
- +500 12 % $6.5900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HY18009 Touch Switch Module for Metal Desk Lamp 12-24V Previous

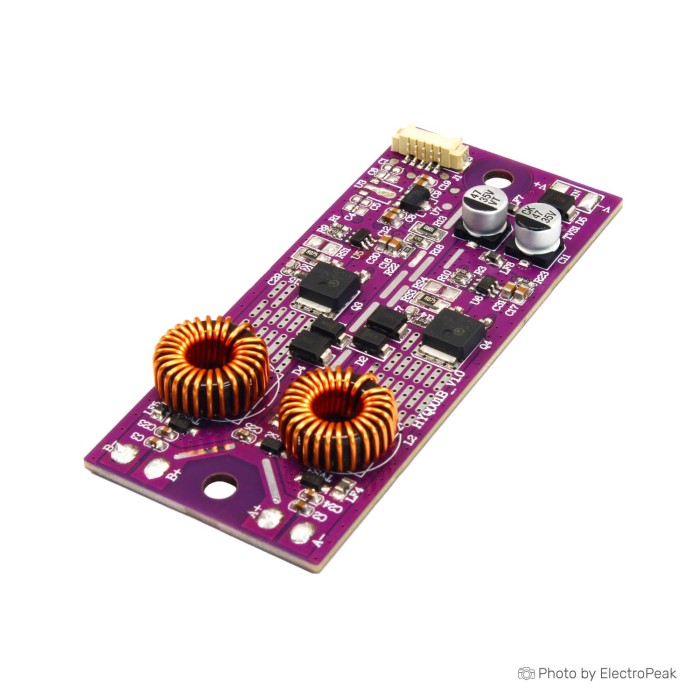

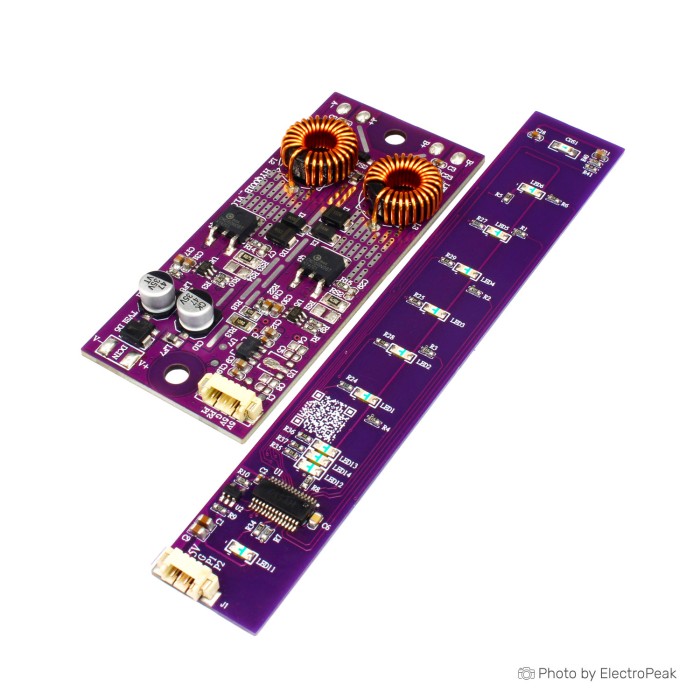

The HY23135 Touch Switch Module is designed for metal desk and floor lamps with a working voltage of 12-24V and a maximum power capacity of 100W. It enables touch control of the lamp's functions, such as turning it on/off and dimming through PWM. With a sensing range of 1-10mm, it offers responsive touch sensitivity even through metal surfaces. This module is perfect for retrofitting LED table lamps, floor lamps, and other metal-bodied lighting devices.
Specifications of HY23135 Touch Switch Module
-
Sensing Range: 1mm - 10mm
-
Power: 100W
-
Suitable Scope: LED table lamp, floor lamp
-
Processing Technic: STD-E
-
Working Voltage: 12V-24V
-
Working Current: 100mA ~ 5A
-
Operating Temperature: 5°C - 45°C
-
Dimming Mode: PWM
-
Single Package Size: 12 x 5 x 2 cm
Test Video of HY23135 Touch Switch Module
| Interface Type | PWM |
|---|---|
| Operating Voltage (V) | 12V-24V |
| Operating Current (mA) | 100mA - 5A |
| Operating Temp (°C) | 5 to 45 °C |
| Dimensions (mm) | 120 x 50 x 20 mm |
| Output Type | PWM |
| Detection Distance | 1-10 mm |
| Sensing Method | Capacitive |
| Chipset | HY23135 |
| Max Output (A) | 5A |
| Channels | 1-channel |
| Sensor Model | HY23135 |
