HY23055 Touch Switch Module for Metal Desk Lamp 12-24V
$4.5000
In stock
SKU
SEN-25-027
Volume discounts:
- +25 4 % $4.3200
- +100 6 % $4.2300
- +300 8 % $4.1400
- +500 10 % $4.0500
- +1000 12 % $3.9600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HY23135 Touch Switch Module for Metal Desk Lamp 12-24V 100W Previous

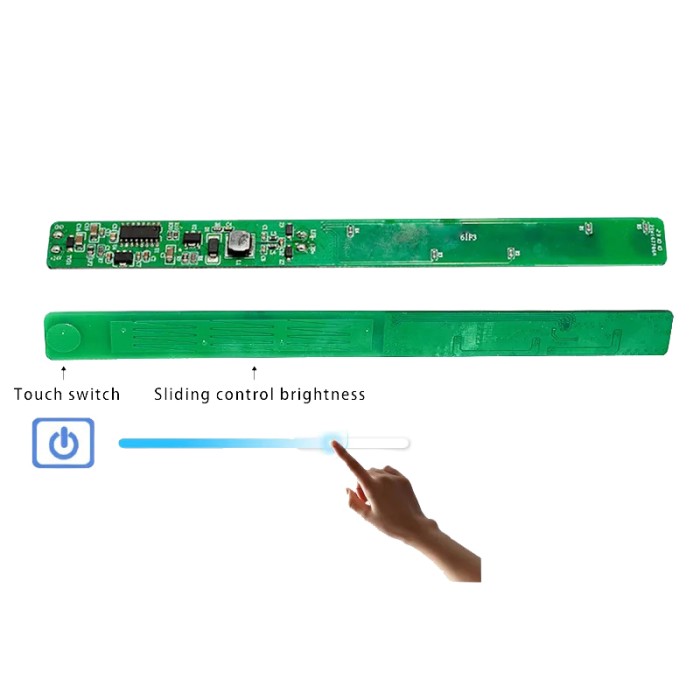

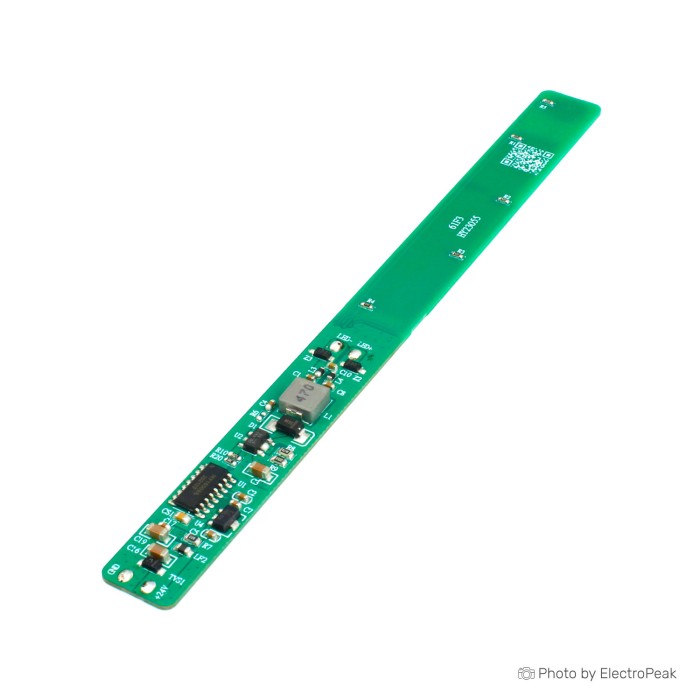

The HY23055 Touch Switch Module is designed for controlling metal desk lamps with a touch interface. It works with an input voltage of 12-24V and supports a maximum power of 18W, providing smooth touch control functionality. The module can sense touch through metal surfaces within a range of 1-10mm, making it ideal for retrofitting or upgrading modern LED desk lamps. It is compact, energy-efficient, and provides stable performance, with a low standby current of 6mA.
Specifications of HY23055 Touch Switch Module
-
Sensing Range: 1mm - 10mm
-
Power: 18W
-
Input Voltage: 12V - 24V
-
Output Current: 500mA
-
Standby Current: 6mA
-
Single Package Size: 16 x 1.5 x 1 cm
Test Video of HY23055 Touch Switch Module
| Operating Voltage (V) | 12-24V |
|---|---|
| Operating Current (mA) | 6mA |
| Dimensions (mm) | 160 x 15 x 10 mm |
| Detection Distance | 1-10mm |
| Sensing Method | Capacitive |
| Chipset | HY23055 |
| Max Output (A) | 500mA |
| Channels | 1-channel |
| Sensor Model | HY23055 |
