HU-064 High Voltage Electromagnetic Gun DIY Kit

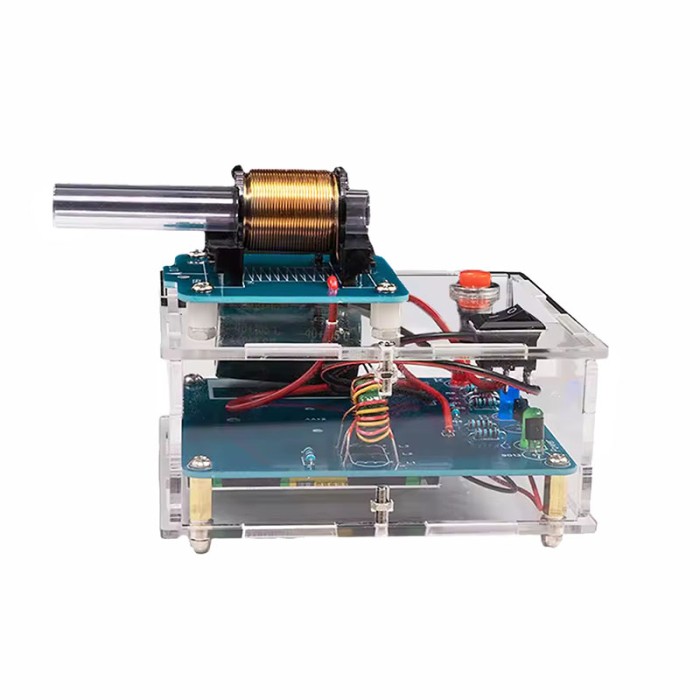

The HU-064 High Voltage Electromagnetic Gun DIY Kit is a hands-on educational kit designed for DIY enthusiasts, electronics experimenters, and welding practice. Using electromagnetic force, the launcher accelerates projectiles at high speeds through electromagnetic pulses. The upgraded version includes a faster charging circuit and a level indicator for better monitoring. The kit is available in two options: upgraded electromagnetic gun parts or upgraded parts with a shell.

Specifications of HU-064 High Voltage Electromagnetic Gun DIY Kit

• Working Voltage: 3V
• Power Supply: 2 x No. 5 batteries (DC 3V, batteries not included)
• Accumulated Current: 50-65mA
• Emission Current: 70-80mA
• PCB Size:
  • A-board: 85×78mm
  • B-board: 50×53mm
• Charging Indicator:
  • Green LED: Power ON
  • Blue LED: Half-charge status (ready to fire)
  • Red LED: Fully charged (varies with battery power)
• Features:
  • High-speed electromagnetic launch
  • Upgraded version with a faster charging circuit
  • Level indicator for charge monitoring
  • Battery box design for easy battery replacement
  • DIY assembly and soldering required

How to Use of HU-064 High Voltage Electromagnetic Gun DIY Kit

1. Turn on the power switch (K1), and the green LED will light up.
2. Wait for 10-30 seconds until the blue LED lights up, indicating half-charge status.
3. Insert the projectile into the rear of the barrel.
4. Press the launch button (K2), and the projectile will be launched.

Safety Precautions

• High Voltage Warning: Always discharge capacitors before soldering to prevent electrical hazards.
• Use insulated tools to handle components safely.
• Self-welding and assembly are required. Ensure you have proper welding tools and follow the provided installation tutorial.

Datasheet of HU-064 High Voltage Electromagnetic Gun DIY Kit

Not available.
