FM Radio DIY Electronic Kit with OLED Display
$13.9500
In stock
SKU
MOD-02-013
Volume discounts:
- +25 4 % $13.3800
- +50 6 % $13.0900
- +100 8 % $12.8100
- +300 10 % $12.5200
- +500 12 % $12.2400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HU-064 High Voltage Electromagnetic Gun DIY Kit Previous

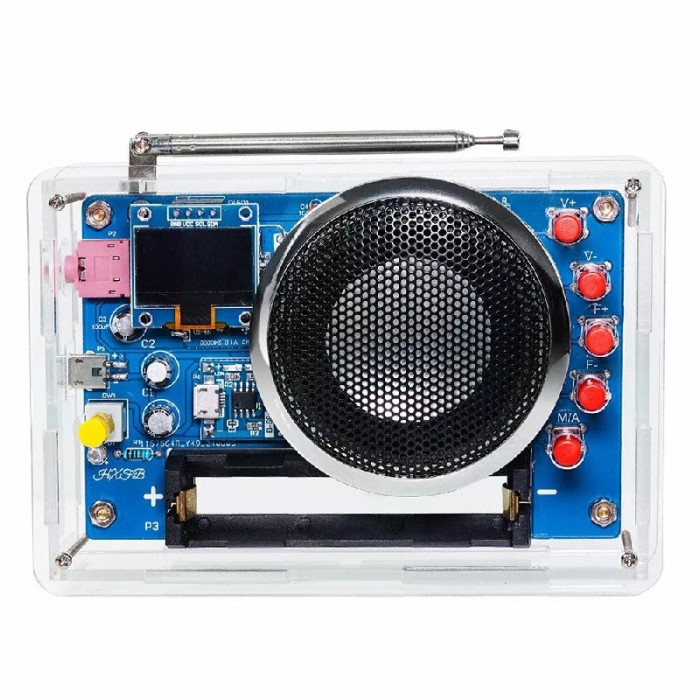

The FM Radio DIY Electronic Kit with OLED Display is a radio project kit for electronics enthusiasts. It uses the RDA5807 radio module and includes an OLED display for viewing station information, battery status, and signal strength. The kit supports automatic station search and storage, with capacity for up to 30 stations. It also includes volume adjustment, mute mode, sleep mode, and power-off memory. A built-in charging circuit is provided for the rechargeable battery setup.
Features of FM Radio DIY Electronic Kit with OLED Display
- RDA5807 radio module
- OLED display
- Automatic station search and storage
- Stores up to 30 stations
- Noise cancellation
- Bass enhancement
- 15-level volume control
- Mute mode
- Sleep mode
- Power-off memory
- Adjustable search thresholds
- Radio signal strength display
- Built-in charging circuit
Specifications of FM Radio DIY Electronic Kit with OLED Display
- Power Supply: Single 18650 lithium battery
- Battery Included: Not included
- Radio Frequency Band: 87-108MHz
- Maximum Operating Current: ~300mA
- PCB Size: 115.8 × 75mm
How to Use FM Radio DIY Electronic Kit with OLED Display
- Install a single 18650 lithium battery.
- Let the radio search and save stations automatically if none are stored.
- Adjust the volume or use mute mode as needed.
- Use the OLED display to check station, battery, and signal information.
- Turn off the power switch while charging.
More Info
- Battery not included.
- Designed as a DIY radio project kit.
| Operating Voltage (V) | 3.7V |
|---|---|
| Operating Current (mA) | 300 |
| Dimensions (mm) | 115.8 x 75 |
| Audio Function | Amplifier |
| Input Types | FM |
| Bluetooth Ver. | No |
| Output Type | Analog |
| Channels | 2-channel |
| Chipset | RDA5807 |
