HC-SR505 PIR Motion Sensor
$0.6200
In stock
SKU
SEN-24-006
Volume discounts:
- +50 5 % $0.5900
- +100 6 % $0.5800
- +300 8 % $0.5700
- +500 11 % $0.5500
- +1000 13 % $0.5400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
YwRobot PIR Motion Detection Sensor Module Previous

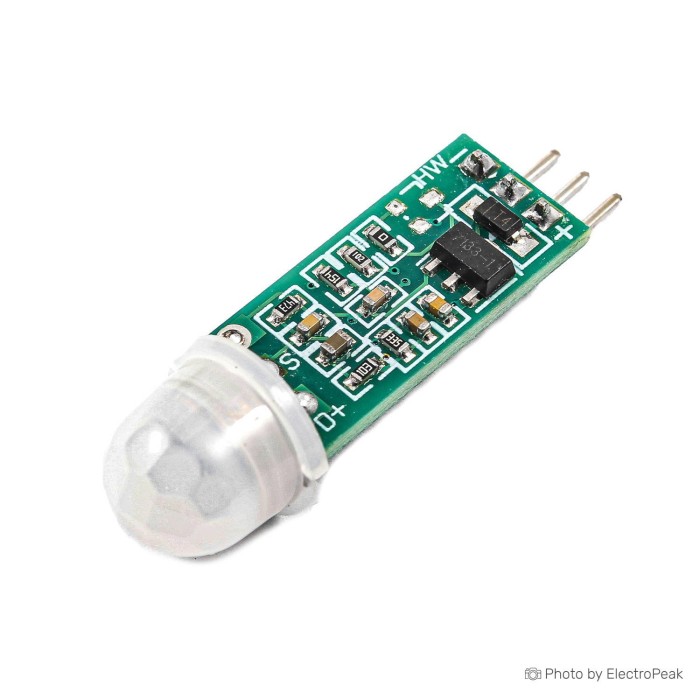

The HC-SR505 PIR Motion Sensor is a compact passive infrared motion sensor module for digital motion detection. It uses IR technology and provides a digital output for electronic control applications. The module is designed for low power consumption and small-size installations. It is suitable for battery-powered electronics where minimal standby current is important. The HC-SR505 PIR Motion Sensor offers adjustable timing and a defined detection area for motion-triggered operation.
Features of HC-SR505 PIR Motion Sensor
- Passive infrared motion detection
- Digital output signal
- Low standby current
- Compact module size
- Repeatable trigger mode
- Adjustable time delay
Specifications of HC-SR505 PIR Motion Sensor
- Operating voltage: DC4.5-20V
- Static current: <60uA
- Output level: High 3.3V / Low 0V
- Trigger: Repeatable trigger by default
- Time delay: Default 8S +-30%
- Time delay adjustment: Can be adjusted to several tens of minutes
- Dimensions: 10x23mm
- Detection angle: <100 degrees cone
- Detection distance: 3 meters
How to Use HC-SR505 PIR Motion Sensor
- Connect the module to a DC4.5-20V power supply.
- Use the digital output for motion detection logic in your circuit.
- Adjust the time delay as needed for your application.
More Info
- The module is intended for electronic control and motion sensing applications.
- It can be used in battery-powered equipment due to its low current draw.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 4.5-20V |
| Operating Current (mA) | <60uA |
| Dimensions (mm) | 10x23mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Digital |
| Response Time | 8s (default) |
| Measurement Range | 3m |
| Sensor Type | PIR |
| Measurement Principle | Infrared |
| Supply Current | uA |
| Detection Angle (°) | <100 degrees cone |
