SS49E Linear Hall Effect Sensor
$0.0750
In stock
SKU
SEN-09-017
Volume discounts:
- +100 4 % $0.0720
- +500 7 % $0.0700
- +1000 8 % $0.0690
- +5000 11 % $0.0670
- +10000 13 % $0.0650
SS49E Linear Hall Effect Sensor is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MPU9250 SPI/I2C 9-Axis Gyro Accelerator Magnetometer Module Previous

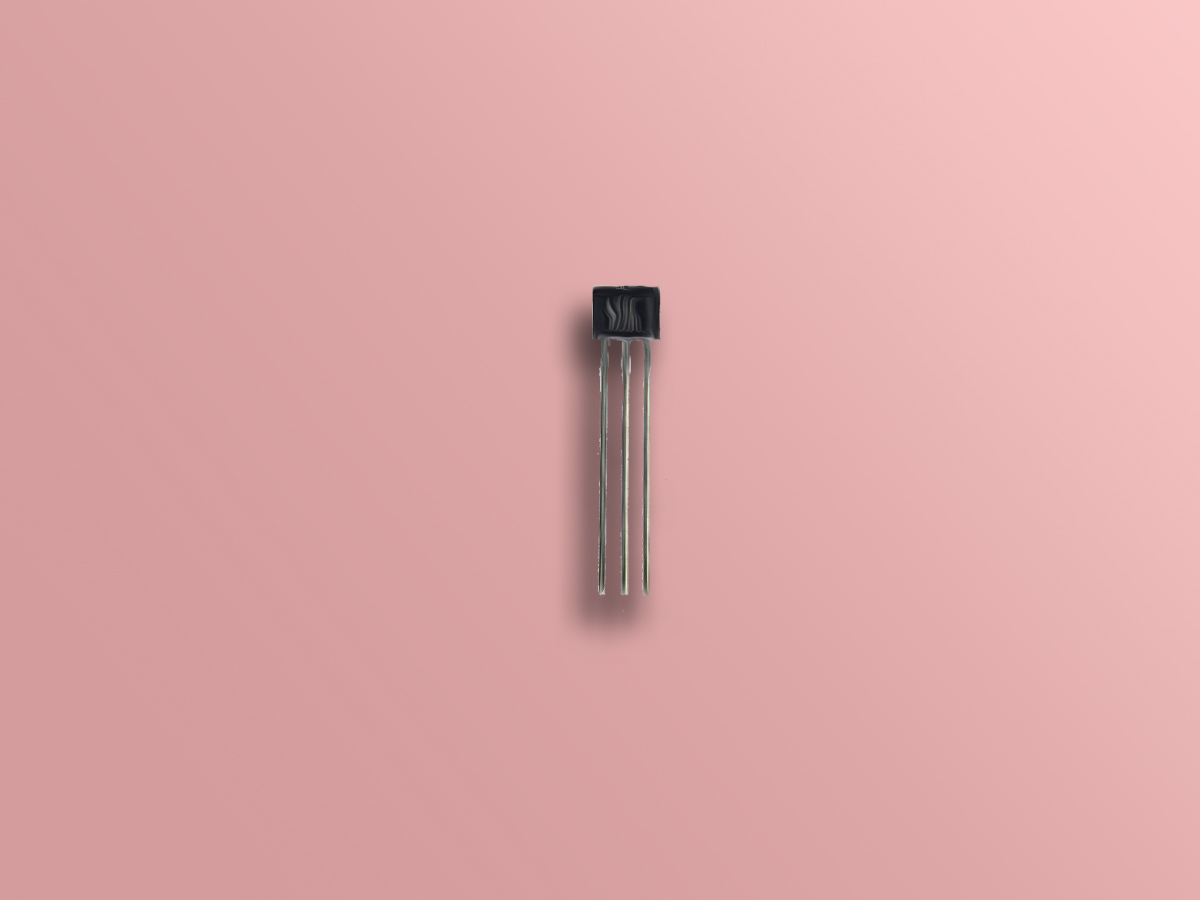

The SS49E Linear Hall Effect Sensor is a compact Hall effect sensor for magnetic field measurement and detection. It provides an analog voltage output that changes with the strength of the applied magnetic field. The sensor is suitable for systems using permanent magnets or electromagnetic magnets. Its internal design is intended to minimize output noise and reduce the need for an output filter. Thin film resistors are used to help maintain stability and accuracy under temperature changes. This pack includes 5 sensors.
Features of SS49E Linear Hall Effect Sensor
- Linear Hall effect sensing
- Analog voltage output
- Low output noise
- Thin film resistors
- Pack of 5 sensors
Specifications of SS49E Linear Hall Effect Sensor
- Type: Hall effect linear sensor
- Model: SS49E
- Output type: Analog voltage
- Supply voltage: 2.7V to 6.5V DC
- Sensitivity: 1~1.75 mV/Gauss
- Ideal sensitivity: 1.4
- Output voltage range: 0.95 ~ (Vs - 0.95)
- Operating temperature range: -40°C to +100°C
- Measurement range: ±650 to ±1000
- Package type: TO-92
- Dimensions: Small and standard TO-92 package
- Quantity: 5 sensors
How to Use SS49E Linear Hall Effect Sensor
- Connect the sensor within the 2.7V to 6.5V DC supply range.
- Read the analog voltage output as the magnetic field changes.
- Use the sensor in a TO-92 compatible setup.
More Info
- Designed for use with permanent magnets or electromagnetic magnets.
- Suitable for magnetic field-related sensing applications.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 2.7V to 6.5V DC |
| Operating Current (mA) | 6mA to 10mA |
| Operating Temp (°C) | -40°C to +100°C |
| Dimensions (mm) | Small standard TO-92 package |
| Mounting Type | THT (Through Hole) |
| Output Type | Analog Voltage |
| Resolution | 1.4 mV/Gauss |
| Response Time | 3 µs |
| Measurement Range | ±650 to ±1000 Gauss |
| Probe Type | Non-contact |
| Weight (g) | 0.19 |
| Chipset | SS49E |
| Relay Output | No |
