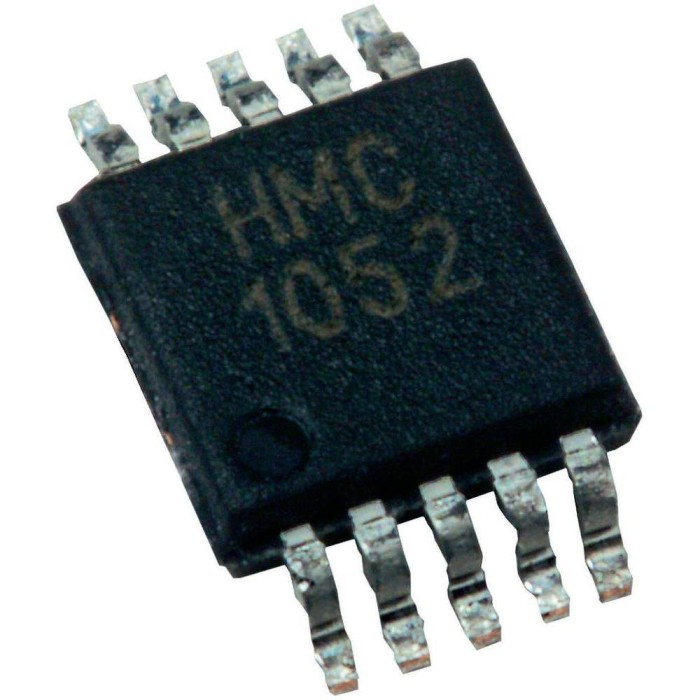

HMC1052 3-Axis Magentic Sensor
$4.5000
In stock
SKU
SEN-09-014
Volume discounts:
- +25 4 % $4.3200
- +100 6 % $4.2300
- +300 8 % $4.1400
- +500 10 % $4.0500
- +1000 12 % $3.9600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SS49E Linear Hall Effect Sensor Previous
The HMC1052 2-Axis Magnetic Sensor is a high-performance magnetoresistive sensor for precision magnetic field measurement. It is designed for applications such as electronic compasses, magnetic anomaly detection, and low-field magnetic sensing. The sensor offers high sensitivity, excellent repeatability, and low noise performance. Its operating range and measurement characteristics make it suitable for demanding industrial and scientific environments.
Features of HMC1052 2-Axis Magnetic Sensor
- 2-axis magnetic field sensing
- Magnetoresistive operation
- Low working voltage
- High sensitivity
- Low noise performance
- Excellent repeatability
Specifications of HMC1052 2-Axis Magnetic Sensor
- Input Voltage: 1.8V to 20V (Vbridge, referenced to GND)
- Bridge Resistance: 800 to 1500 Ω (typical 1000 Ω at 10 mA)
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -50°C to +125°C (unbiased)
- Field Range: ±6 gauss (full scale)
- Linearity Error: 0.5% FS (±3 gauss), 1.3% FS (±6 gauss)
- Hysteresis Error: 0.06% FS (3 sweeps across ±3 gauss)
- Repeatability Error: 0.05% FS (3 sweeps across ±3 gauss)
- Bridge Offset: ±1.25 mV/V (typical ±0.5 mV/V at 0 gauss)
- Sensitivity: 1.0 mV/V/gauss (typical, with 0.5A set/reset current)
- Noise Density: 50 nV/√Hz at 1 Hz (Vbridge = 5V)
- Resolution: 280 mgauss (10 Hz bandwidth, Vbridge = 5V)
- Bandwidth: DC to 3 MHz
- Sensitivity Temperature Coefficient: -2900 ppm/°C (Ta = -40 to +125°C)
- Bridge Resistance Tempco: 2100 to 2900 ppm/°C (Vbridge = 5V)
- Sensitivity Ratio (X:Y): 75% to 120% (typical 100%)
How to Use HMC1052 2-Axis Magnetic Sensor
- Connect the sensor within the specified input voltage range.
- Measure the magnetic field within the ±6 gauss range.
- Use the output data for magnetic field sensing applications.
More Info
- Magnetoresistive sensor technology
- Suitable for precision magnetic field measurement
- Developed by Honeywell
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 1.8V to 20V |
| Operating Temp (°C) | -40°C to +125°C |
| Mounting Type | SMD (Surface Mount) |
| Output Type | Analog Voltage |
| Accuracy | 0.5% FS for ±3 gauss, 1.3% FS for ±6 gauss |
| Resolution | 280 mgauss |
| Measurement Range | ±6 gauss |
| Number of Axes | 2-axis |
| Push Button | No |
| Sensor Type | Magnetometer Module |
| Measurement Principle | Anisotropic Magnetoresistive (AMR) |
| Chipset | HMC1052 |
| Storage Temperature | -50°C to +125°C (unbiased) |
