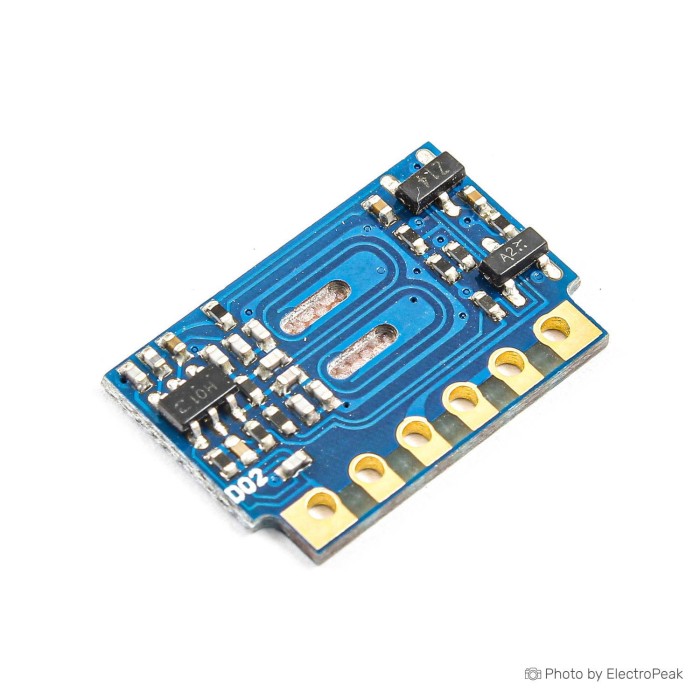

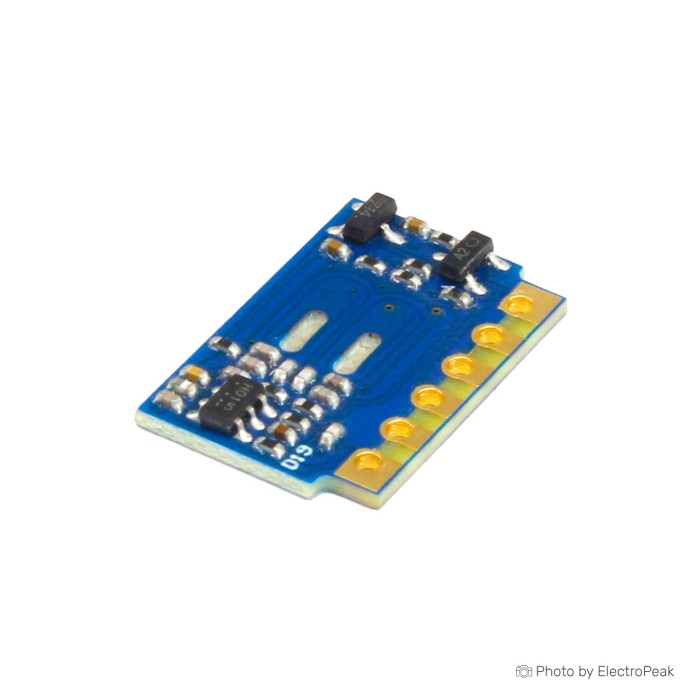

H5V4D 433MHz Wireless Receiver Module
$0.6500
In stock
SKU
COM-09-081
Volume discounts:
- +50 5 % $0.6200
- +100 6 % $0.6100
- +300 8 % $0.6000
- +500 9 % $0.5900
- +1000 12 % $0.5700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GT-24 NRF24L01+ PA + LNA Wireless Transceiver Module - 2.4GHz, IPX Previous
The H5V4D 433MHz Wireless Receiver Module is a wireless RF receiver module for data transmission and radio-frequency communication. It operates at 433MHz and uses ASK modulation. The module is designed for RF remote control products and supports standard CMOS-level data input. It is suitable for wireless signal receiving in compact electronics and robotics applications.
This H5V4D 433MHz Wireless Receiver Module combines low power consumption with stable receiving performance. It provides a sensitivity of -102dBm and a data rate of 4.8Kbps. The module uses a 75 ohm antenna impedance and works with most ASK/OOK transmitters.
Features of H5V4D 433MHz Wireless Receiver Module
- 433MHz RF operation
- ASK modulation
- -102dBm sensitivity
- Low power consumption
- CMOS-level data input
- ASK/OOK transmitter compatibility
Specifications of H5V4D 433MHz Wireless Receiver Module
- Model: H5V4D
- Frequency: 433MHz
- Modulation: ASK
- Sensitivity: -102dBm
- Voltage: 3V DC
- Current: 0.28mA
- Data Rate: 4.8Kbps
- Antenna Impedance: 75 ohm
- Data Input: CMOS level standard
- RF Emission: Very Low RF Waves
- Operating Temperature: -20 to 70 degrees Celsius
- Compatibility: Most transmitters (ASK/OOK)
- Size: 12x18x2.10 mm
How to Use H5V4D 433MHz Wireless Receiver Module
- Connect the module to a 3V DC supply.
- Wire the data input to a CMOS-level signal source.
- Use a compatible ASK or OOK transmitter for communication.
- Operate the module within the specified temperature range.
More Info
- Designed for RF remote control products.
- Suitable for wireless switches, wireless doorbells, and security alarms.
- Also used for smart home remote control and remote control toys.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3V |
| Operating Current (mA) | 0.28 mA |
| Operating Temp (°C) | -20 to 70 |
| Dimensions (mm) | 12 x 18 x 2.10 mm |
| Mounting Type | SMD (Surface Mount) |
| Wireless Protocol | RF (Radio Frequency) |
| Frequency Band | 433MHz |
| Data transmission rate | 4.8Kbps |
| Encryption | None |
| RF Modulation | ASK |
| TX Power (dBm) | No |
| SIM Slots | 0 |
| Chipset | H5V4D |
| Input Voltage (V) | 3V DC |
| Application | Remote control toys, Smart home remote control, Wireless doorbell, Wireless switch, Wireless security alarm |
| Receiver Sensitivity | -102dBm |
