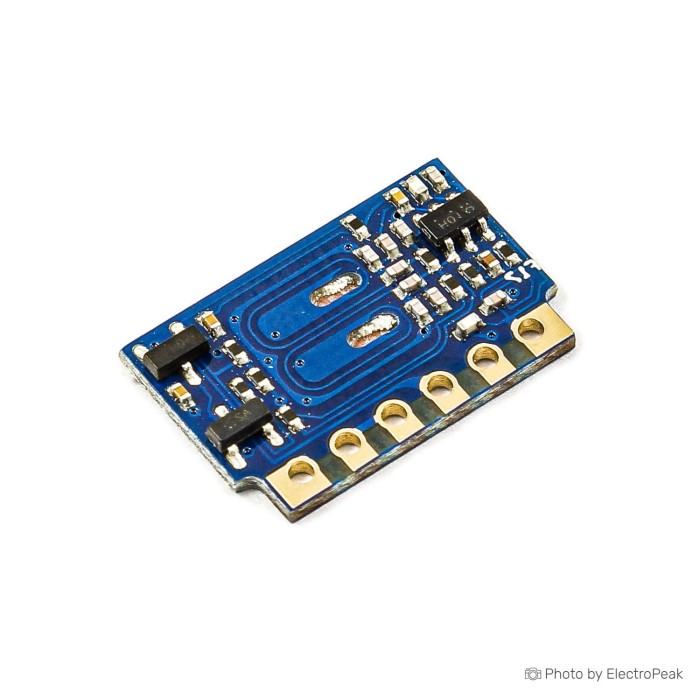

H3V4F 433MHz Wireless Receiver Module
$0.6500
In stock
SKU
COM-09-080
Volume discounts:
- +50 5 % $0.6200
- +100 6 % $0.6100
- +300 8 % $0.6000
- +500 11 % $0.5800
- +1000 12 % $0.5700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
H5V4D 433MHz Wireless Receiver Module Previous
The H3V4F 433MHz Wireless Receiver Module is a wireless RF receiver module for radio-frequency data transmission. It uses 433MHz radio waves and ASK modulation for wireless communication. The module is designed for wireless remote control applications and related receiver setups. It includes a CMOS-compatible data input and is intended for use with ASK/OOK transmitters. The H3V4F 433MHz Wireless Receiver Module combines low-power operation with a compact form factor.
Features of H3V4F 433MHz Wireless Receiver Module
- 433MHz operating frequency
- ASK modulation
- Low sensitivity level
- CMOS-compatible data input
- Low RF output
- ASK/OOK transmitter compatibility
- Compact size
Specifications of H3V4F 433MHz Wireless Receiver Module
- Model: H3V4F
- Frequency: 433MHz
- Modulation: ASK
- Sensitivity: -102dBm
- Voltage: 3V DC
- Current: 0.28mA
- Transfer rate: 4.8Kbps
- Antenna impedance: 75 ohm
- Data input: CMOS standard compatible
- RF wave level: Very low
- Operating temperature: -20 to 70°C
- Compatible with: ASK/OOK transmitters
- Dimensions: 12x18x2.10 mm
How to Use H3V4F 433MHz Wireless Receiver Module
- Connect the module to a compatible circuit.
- Provide 3V DC power.
- Use it with an ASK/OOK transmitter at 433MHz.
More Info
- Wireless RF receiver module for remote control projects.
- Suitable for 433MHz communication setups.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3V |
| Operating Current (mA) | 0.28 mA |
| Operating Temp (°C) | -20 to 70 °C |
| Dimensions (mm) | 12x18x2.10 mm |
| Mounting Type | SMD (Surface Mount) |
| Wireless Protocol | RF (Radio Frequency) |
| Frequency Band | 433MHz |
| Data transmission rate | 4.8Kbps |
| RF Modulation | ASK |
| Chipset | H3V4F |
| Input Voltage (V) | 3V DC |
| Application | Remote control toys, Smart home remote control, Wireless doorbell, Wireless switch, Wireless security alarm |
| Receiver Sensitivity | -102dBm |
