GY232V2 Micro FT232Rl USB to TTl Module
$1.5000
In stock
SKU
COM-05-071
Volume discounts:
- +50 4 % $1.4400
- +100 6 % $1.4100
- +300 7 % $1.3900
- +500 9 % $1.3600
- +1000 11 % $1.3300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CJMCU-750 SC16IS750 I2C/SPI to Dual Channel UART Converter Module Previous

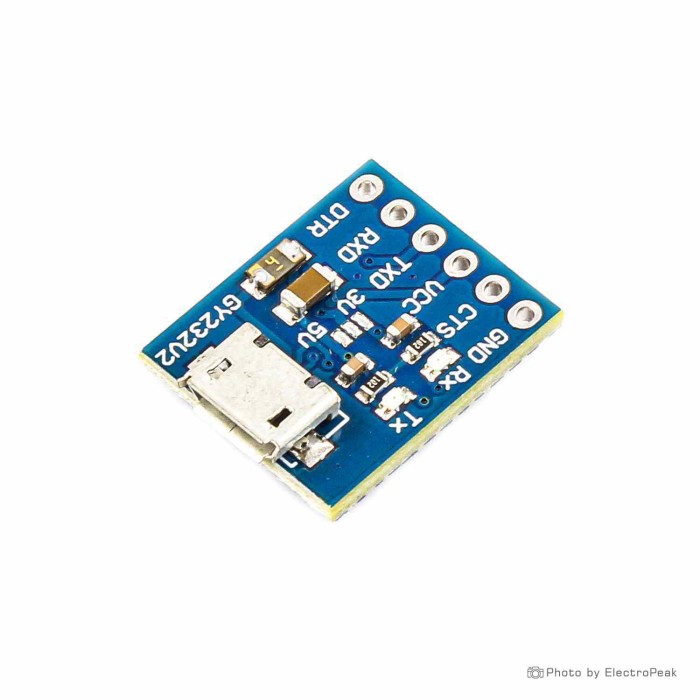

GY232V2 FT232RL USB to TTL Module is a compact USB to serial conversion module for electronics and microcontroller projects. It provides a Micro USB connection to the computer and exposes pin headers for easy board connection. The board includes two LEDs for transmit and receive status indication. It also includes an internal 500 mA fuse for USB port protection. The output voltage is selectable between 3.3V and 5V.
Features of GY232V2 FT232RL USB To TTL Module - Micro USB, 3.3V/5V
- USB to TTL conversion
- FT232RL chip
- Micro USB connector
- Transmit and receive LEDs
- 500 mA internal fuse
- Selectable 3.3V and 5V output
Specifications of GY232V2 FT232RL USB To TTL Module - Micro USB, 3.3V/5V
- Converter chip: FT232RL
- USB protocol: USB 2.0
- Operating system support: Windows XP/Vista/7/8/8.1/10
- Data rate: All standard rates
- Output voltage: 3.3V and 5V
- Internal fuse current: 500 mA
- USB connector type: Micro USB
- Dimensions: 15x17x5 mm
How to Use GY232V2 FT232RL USB To TTL Module - Micro USB, 3.3V/5V
- Connect the module to a computer through the Micro USB interface.
- Select the required output voltage.
- Use the pin headers to connect the module to the target board.
More Info
- Two LEDs indicate transmit and receive activity.
- The internal fuse helps protect the USB port against short circuits.
| Platform | Windows 7, Windows VISTA, Windows XP, Windows 10, Windows 8, Windows 8.1 |
|---|---|
| Interface Type | USB, UART |
| Operating Voltage (V) | 3.3V, 5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 15x17x5 mm |
| Data transmission rate | All standard rates |
| Voltage Levels | 3.3V, 5V |
| Chipset | FT232RL |
| Protection | Internal 500mA fuse |
| Direction | USB-TTL |
| Pins | 6 |
| Indicator LEDs | Two on-board LEDs |
