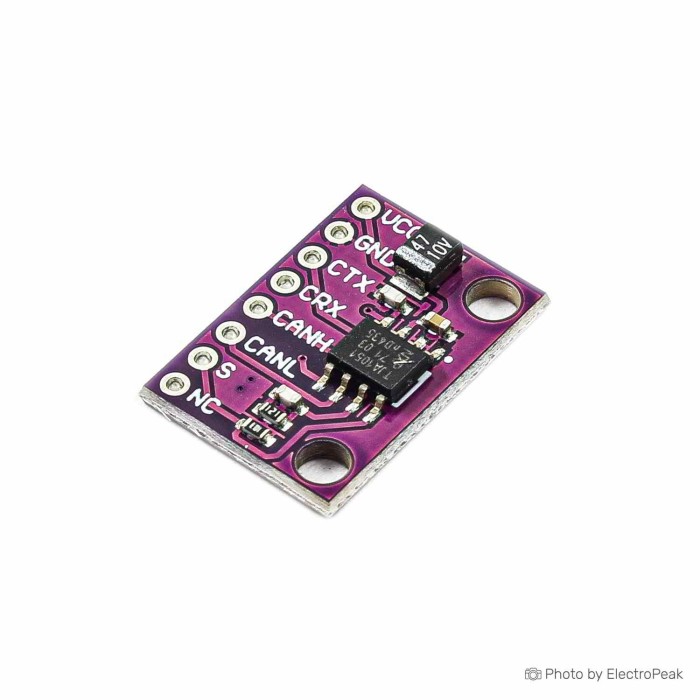

CJMCU-1051 TJA1051 CAN Transceiver Module - High-Speed, Low Power
$1.2600
In stock
SKU
COM-05-063
Volume discounts:
- +50 5 % $1.2000
- +100 7 % $1.1700
- +300 10 % $1.1400
- +500 12 % $1.1100
- +1000 14 % $1.0800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GY232V2 Micro FT232Rl USB to TTl Module Previous
The CJMCU-1051 TJA1051 CAN Transceiver Module provides the interface between a CAN controller and the physical bus. It is a high-speed CAN transceiver designed for automotive and industrial applications. The module supports data transmission up to 1 Mbit/s. It is compatible with 3V to 5V microcontroller interfaces. The TJA1051 is an upgraded version of the TJA1050 with improved EMC and ESD performance.
Features of CJMCU-1051 TJA1051 CAN Transceiver Module - 3V to 5V, 1Mbps
- High-speed CAN transceiver
- Up to 1 Mbit/s data rate
- 3V to 5V microcontroller interface
- Improved EMC performance
- Improved ESD performance
- No bus wake standby mode
Specifications of CJMCU-1051 TJA1051 CAN Transceiver Module - 3V to 5V, 1Mbps
- Chip: TJA1051
- Input voltage range: 3 to 5V
- Data transmission rate: up to 1 Mbit/s
- EMC and ESD protection: Yes
- Dimensions: 15x21 mm
- Bus wake standby mode support: No
- Model: CJMCU-1051 TJA1051
How to Use CJMCU-1051 TJA1051 CAN Transceiver Module - 3V to 5V, 1Mbps
- Connect the module to a compatible CAN controller.
- Use the 3V to 5V interface for microcontroller connection.
- Integrate the module into the CAN network for data communication.
More Info
- Designed for automotive and industrial CAN applications.
- The module acts as the link between controller and physical bus.
| Interface Type | CAN |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 15x21 |
| Mounting Type | THT |
| Network Protocol | CAN |
| Data transmission rate | 1Mbps |
| Standard | CAN |
| Voltage Levels | 3 to 5V |
| Chipset | TJA1051 |
| Protection | EMC, ESD |
| Direction | Bidirectional |
| Pins | 8 |
