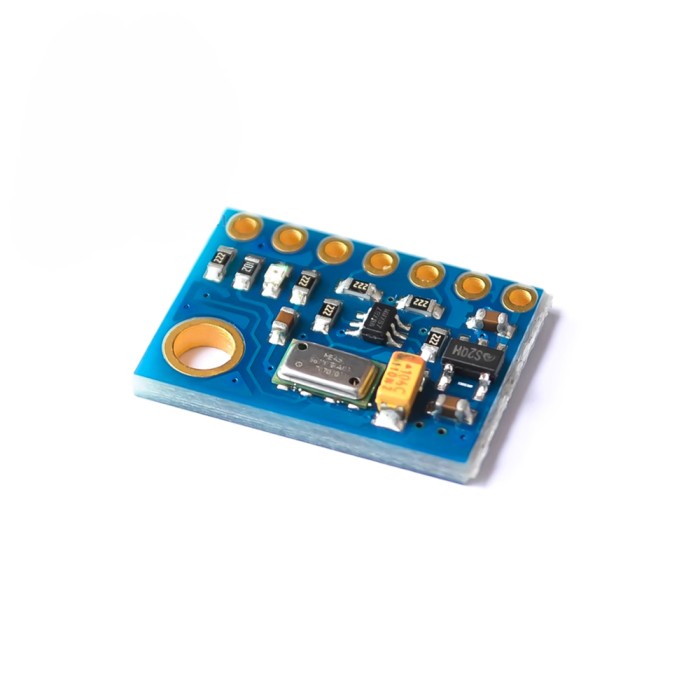

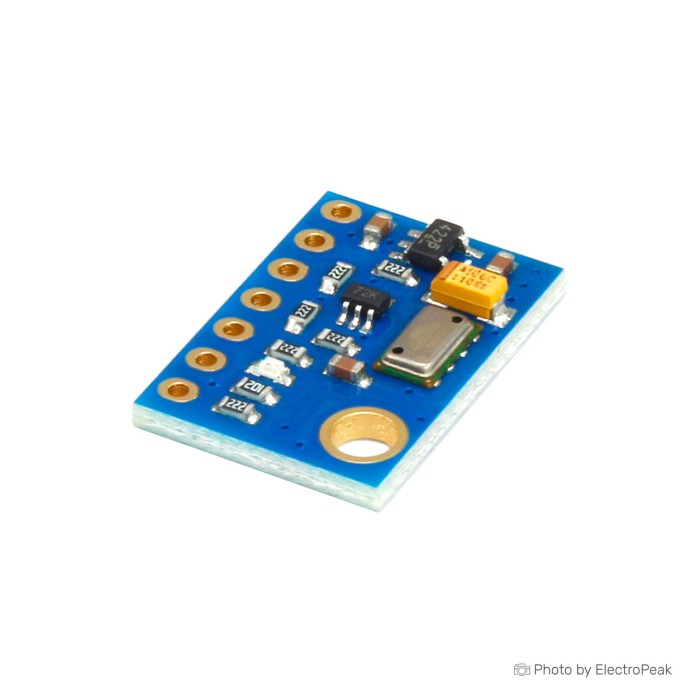

GY-63 MS5611 Air Pressure Sensor Module
$4.5000
In stock
SKU
SEN-08-022
Volume discounts:
- +25 4 % $4.3200
- +100 6 % $4.2300
- +300 8 % $4.1400
- +500 10 % $4.0500
- +1000 12 % $3.9600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
BME280 Atmospheric Pressure Altimeter Sensor Module Previous
GY-63 MS5611 Air Pressure Sensor Module is a high-precision barometric pressure sensor module for altimeter and barometer applications. It supports SPI and I2C communication and includes a 24-bit ADC. The module uses the MS5611 chip and provides high-precision pressure sensing. It is designed for projects that require accurate altitude measurement and digital pressure and temperature output. The module also includes an internal low dropout regulator and internal factory calibrated coefficients.
Features of GY-63 MS5611 Air Pressure Sensor Module
- High-precision barometric sensing
- SPI and I2C communication
- 24-bit ADC
- MS5611 chip
- Internal low dropout regulator
- Internal factory calibrated coefficients
- 10 cm altitude resolution
Specifications of GY-63 MS5611 Air Pressure Sensor Module
- Main chip: MS5611
- Power supply: 3 to 5V
- Communication interface: I2C and SPI
- ADC: 24-bit
- Factory calibration: Internal factory calibrated coefficients
- Size: 19 x 13 mm
- Altitude measurement accuracy: 10 cm
How to Use GY-63 MS5611 Air Pressure Sensor Module
- Connect the module to a compatible microcontroller using I2C or SPI.
- Supply power within the 3 to 5V range.
- Read the digital pressure and temperature output for your application.
More Info
- Suitable for altimeter and barometer projects.
- Provides digital pressure and temperature values.
| Interface Type | I2C, SPI |
|---|---|
| Operating Voltage (V) | 3 - 5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 19 x 13 mm |
| Mounting Type | Screw holes |
| IP Rating | None |
| Output Type | Digital |
| Accuracy | 10 cm (Altitude Resolution) |
| Resolution | 24-bit |
| Measurement Range | 10 to 1200 mbar |
| Environmental Parameter | Pressure |
| Probe Type | Non-contact |
| Chipset | MS5611 |
| Relay Output | No |
| Protocols | I2C, SPI |
| Temp Accuracy | ±0.8 °C |
