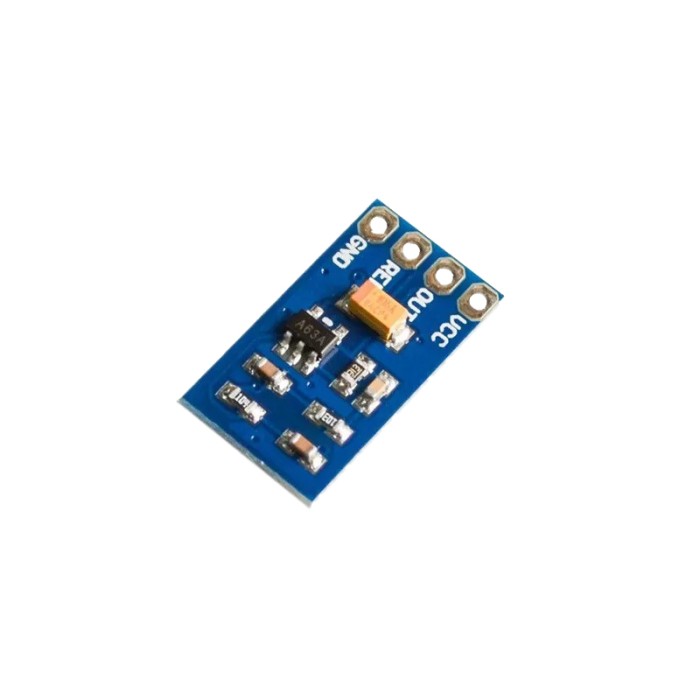

GY-35 ENC-03RC 1-Axis Gyroscope Module
$2.5000
In stock
SKU
SEN-02-011
Volume discounts:
- +50 4 % $2.4000
- +100 6 % $2.3400
- +300 8 % $2.2900
- +500 10 % $2.2400
- +1000 12 % $2.1900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The GY-35 ENC-03RC is a compact 1-axis gyroscope module based on the ENC-03MB gyroscope chip, designed for motion detection and angular rate sensing. It includes the high-performance MCP601 operational amplifier and operates with an analog output mode. With its ultra-small size and low power consumption, this module is ideal for applications such as robotics, motion detection systems, and other embedded systems requiring precise 1-axis rotational data.
Specifications of GY-35 ENC-03RC 1-Axis Gyroscope Module
-
Chip: ENC-03MB
-
Operational Amplifier: MCP601 (SOT23-5 package)
-
Power Supply: 3V to 5V
-
Output Mode: Analog output
-
Dimensions: 10x17.5mm
Datasheet of GY-35 ENC-03RC 1-Axis Gyroscope Module
Datasheet: Not available.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3V to 5V |
| Operating Current (mA) | 5 mA |
| Operating Temp (°C) | -5 to +75 °C |
| Dimensions (mm) | 10 x 17.5 mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Analog Voltage |
| Resolution | 0.67 mV/deg/s |
| Response Time | 20 ms |
| Measurement Range | ±300 deg/s |
| Number of Axes | 1-axis |
| Push Button | No |
| Sensor Type | Gyroscope |
| Measurement Principle | Piezoelectric |
| Supply Current | mA |
| Chipset | ENC-03MB |
