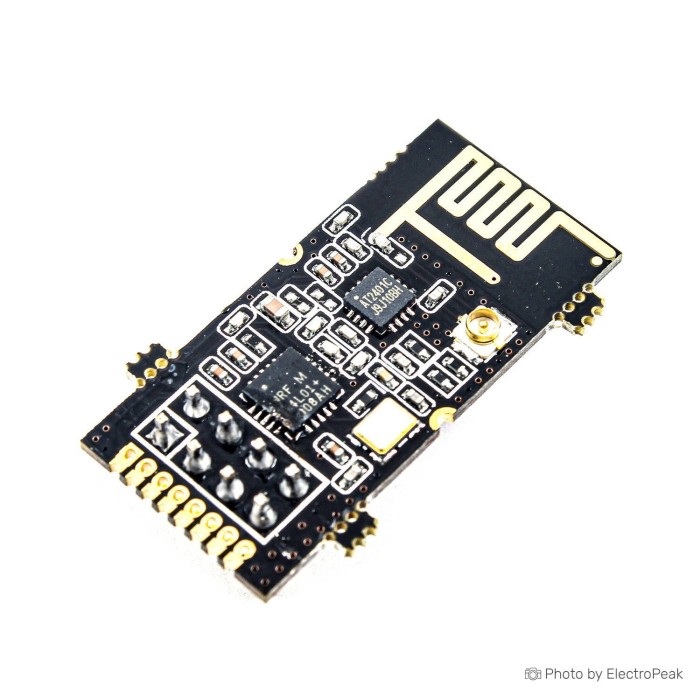

GT-24 NRF24L01+ PA + LNA Wireless Transceiver Module - 2.4GHz, IPX
$1.9500
In stock
SKU
COM-09-082
Volume discounts:
- +50 4 % $1.8800
- +100 6 % $1.8400
- +300 8 % $1.8000
- +500 9 % $1.7700
- +1000 11 % $1.7300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
NRF24L01+PA+LNA with USB Interface, Ceramic Antenna Previous
The GT-24 NRF24L01+ PA + LNA Wireless Transceiver Module is a wireless transceiver module for data transmission in the 2.4GHz band. It combines PA and LNA stages with SPI communication and supports both PCB antenna and ipex carrier antenna types. The module includes DIP and SMD interface options for flexible installation. It is designed around the GT-24 model and provides adjustable transmit power and adjustable data rates. The module also supports Auto Acknowledge.
Features of GT-24 NRF24L01+ PA + LNA Wireless Transceiver Module - 2.4GHz, IPX
- 2.4GHz wireless transceiver
- PA and LNA support
- SPI communication interface
- PCB antenna and ipex carrier antenna
- DIP and SMD interface options
- Auto Acknowledge support
- Adjustable transmit power
- Adjustable data rates
Specifications of GT-24 NRF24L01+ PA + LNA Wireless Transceiver Module - 2.4GHz, IPX
- Model: GT-24
- Size: 30x14mm
- Operating frequency: 2.4-2.5GHz
- Interface mode: 1x8x1.27mm / 2x4x2.54mm
- Supply voltage: 2-3.6V
- Range: 1100 meters
- Transmit power: 4 adjustable levels
- Shutdown current: 30uA
- Data rate: 250Kbps, 1Mbps, 2Mbps
- Maximum output power: +20dBm
- Receive sensitivity at 2Mbps: -92dBm
- Receive sensitivity at 1Mbps: -95dBm
- Receive sensitivity at 250Kbps: -104dBm
- TX current (peak): 90mA
- RX current (peak): 20mA
- Sleep current: 4.2uA
- PA gain: 20dB
- LNA gain: 10dB
- LNA noise: 2.6dB
- Antenna gain (peak): 2dBI
- Auto Acknowledge: Yes
- Antenna type: PCB, ipex carrier
- Communication protocol: SPI
- Working temperature: -40 to 85C
- Storage temperature: -40 to 125C
How to Use GT-24 NRF24L01+ PA + LNA Wireless Transceiver Module - 2.4GHz, IPX
- Connect the module using the 1x8x1.27mm or 2x4x2.54mm interface mode.
- Set the supply voltage within 2-3.6V.
- Use SPI communication to configure the module and set the required data rate and transmit power.
- Select the PCB antenna or ipex carrier antenna type for your setup.
More Info
- The module supports DIP and SMD use.
- The module includes Auto Acknowledge.
- The module is suitable for wireless communication projects that require SPI control.
| Platform | Arduino Mega, Arduino Uno, Arduino Nano |
|---|---|
| Interface Type | SPI |
| Operating Voltage (V) | 2-3.6V |
| Operating Current (mA) | TX: 90mA, RX: 20mA, Shutdown: 30uA, Sleep: 4.2uA |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 30x14mm |
| Mounting Type | THT |
| Connector | IPEX |
| Wireless Protocol | Enhanced ShockBurst (ESB) |
| Frequency Band | 2.4GHz |
| Data transmission rate | 250kbps, 1Mbps, 2Mbps |
| RF Modulation | GFSK |
| TX Power (dBm) | +20dBm |
| Range (m) | 1100m |
| SIM Slots | 0 |
| Chipset | NRF24L01 |
| Gain (dBi) | 2dBi |
| Antenna Type | Internal Antenna, External IPEX/IPX |
| Receiver Sensitivity | -92dBm @ 2Mbps, -95dBm @ 1Mbps, -104dBm @ 250Kbps |
| Storage Temperature | -40 to +125 °C |
