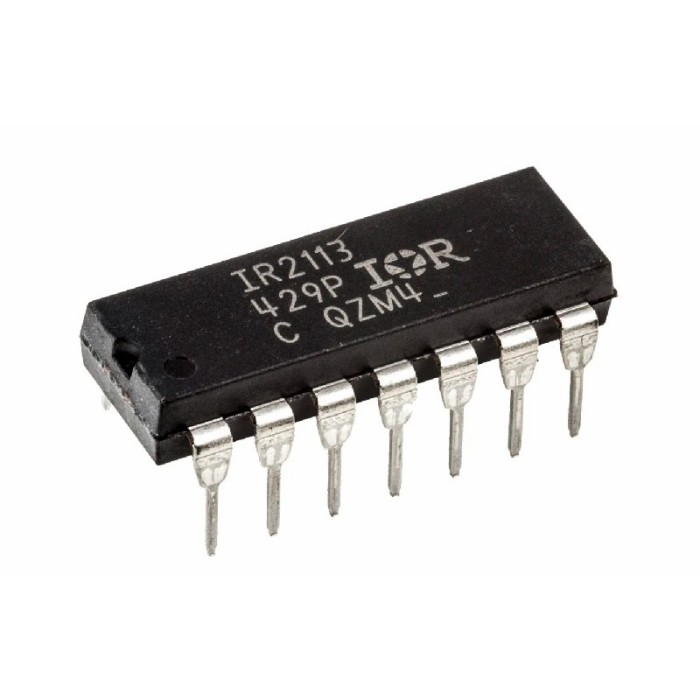

Gate Driver IR2113
$0.5500
In stock
SKU
S1-0127
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Gate Driver IR2113S
Previous
The IR2113S is a high-voltage, high-speed gate driver IC designed to drive both high-side and low-side power MOSFETs or IGBTs. Featuring a floating channel for bootstrap operation and a 600 V voltage class, it is ideal for motor control, SMPS, UPS, and solar inverter applications. It supports 3.3 V logic, offers matched propagation delays, and integrates under-voltage lockout for added protection.
Specifications of IR2113S Gate Driver
-
Channels: 2 (high-side and low-side)
-
Voltage Class: 600 V
-
Gate Drive Supply Voltage (Vcc): 10 V to 20 V
-
Logic Supply Range: 3.3 V to 20 V
-
Output Current (Source/Sink): 2.5 A / 2.5 A
-
Turn-On Propagation Delay: 120 ns
-
Turn-Off Propagation Delay: 94 ns
-
VBS UVLO (On/Off): 8.6 V / 8.2 V
-
VCC UVLO (On/Off): 8.5 V / 8.2 V
-
Input Compatibility: 3.3 V logic
-
Input Type: CMOS Schmitt-triggered with pull-down
-
Isolation Type: Functional level shift
-
Cycle-by-Cycle Edge-Triggered Shutdown Logic: Yes
-
dV/dt Immunity: High
-
Package: SOIC-8
-
Qualification: Industrial
Datasheet of IR2113S Gate Driver
| Parametrics | IR2110S | IR2112S | IR2113S |
|---|---|---|---|
| Channels | 2 | 2 | 2 |
| Configuration | High-side and Low-side | High-side and Low-side | High-side and Low-side |
| Input Vcc (Min - Max) | 10 V - 20 V | 10 V - 20 V | 10 V - 20 V |
| Isolation Type | Functional levelshift | Functional levelshift | Functional levelshift |
| Output Current (Source) | 2.5 A | 0.25 A | 2.5 A |
| Output Current (Sink) | 2.5 A | 0.5 A | 2.5 A |
| Qualification | Industrial | Industrial | Industrial |
| Turn-Off Propagation Delay | 94 ns | 105 ns | 94 ns |
| Turn-On Propagation Delay | 120 ns | 125 ns | 120 ns |
| VBS UVLO (On) | 8.6 V | 8.5 V | 8.6 V |
| VBS UVLO (Off) | 8.2 V | 8.1 V | 8.2 V |
| VCC UVLO (On) | 8.5 V | 8.6 V | 8.5 V |
| VCC UVLO (Off) | 8.2 V | 8.2 V | 8.2 V |
| Voltage Class | 500 V | 600 V | 600 V |
