Flat PCB IPEX Antenna - 433/470/490/510MHz
SAVE
As low as $0.0510
In stock
Only %1 left
SKU
COM-01-031
Flat PCB IPEX Antenna - 433/470/490/510MHz is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
433MHz Flat PCB IPEX Antenna Previous

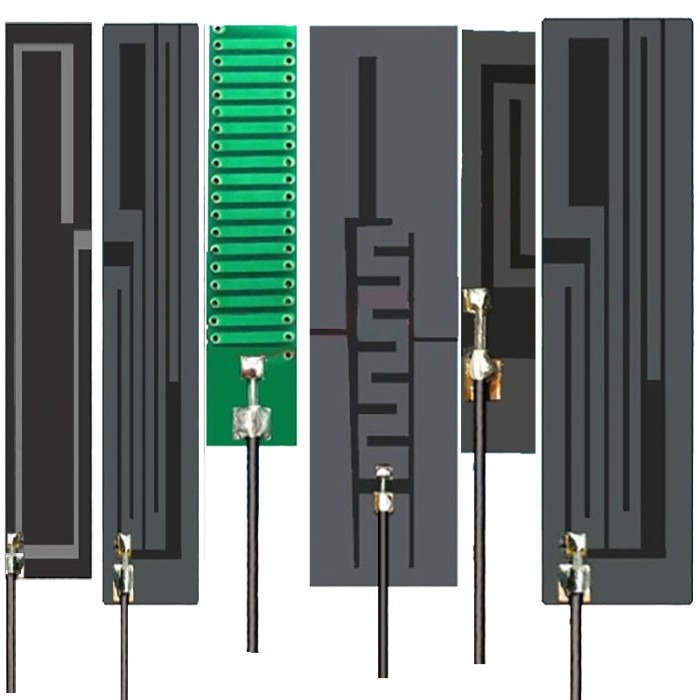

The Flat PCB IPEX Antenna is a compact antenna for 433MHz, 470MHz, 490MHz, and 510MHz frequency bands. It uses an IPEX 1st Generation connector and is available in Flat PCB and Flexible FPC formats. This antenna is suited for wireless communication applications and supports multiple gain and cable length options. The Flat PCB IPEX Antenna provides a practical choice for RF modules, IoT devices, and remote controllers.
Features of Flat PCB IPEX Antenna - 433/470/490/510MHz
- 433MHz, 470MHz, 490MHz, and 510MHz bands
- IPEX 1st Generation connector
- Flat PCB and Flexible FPC formats
- Multiple gain options
- Multiple cable length options
- Vertical polarization
Specifications of Flat PCB IPEX Antenna - 433/470/490/510MHz
- Frequency Range: 433MHz / 470MHz / 490MHz / 510MHz
- Connector Type: IPEX 1st Generation
- Antenna Type: Flat PCB / Flexible FPC
- Gain Options: 5dB for 470/490/510 PCB (32mm x 7mm)
- Gain Options: 6dB for 470 FPC (27mm x 17mm)
- Gain Options: 3dB for 470/490/510 FPC (32mm x 8mm)
- Gain Options: 8dB for 470/510 FPC (73mm x 17mm)
- Gain Options: 8dB for 470/490/510 FPC (70mm x 20mm)
- Gain Options: 8dB for 470/490/510 FPC (55mm x 14mm)
- Gain Options: 6dB for 433/470/510 FPC (57mm x 10mm)
- Impedance: 50 Ohms
- Polarization: Vertical
- Cable Length Options: 8.2cm (PCB 32mm x 7mm, FPC 32mm x 8mm)
- Cable Length Options: 6cm (FPC 27mm x 17mm, FPC 57mm x 10mm)
- Cable Length Options: 13cm (FPC 73mm x 17mm, FPC 70mm x 20mm, FPC 55mm x 14mm)
How to Use Flat PCB IPEX Antenna - 433/470/490/510MHz
- Select the required antenna type and frequency band.
- Connect the IPEX 1st Generation connector to the matching interface.
- Choose the gain and cable length option needed for the installation.
- Install the antenna in the target wireless device.
More Info
- Datasheet: Not available
- Available in PCB and FPC variants
