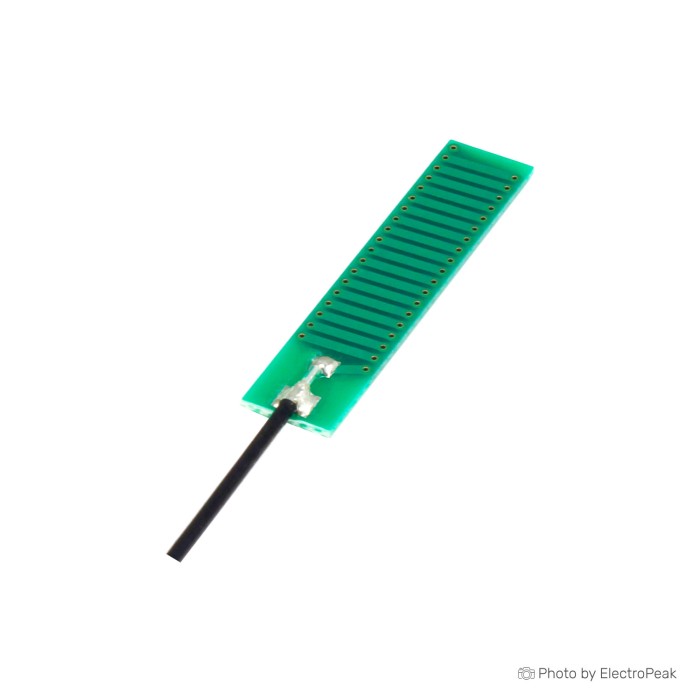

433MHz Flat PCB IPEX Antenna
SAVE
As low as $0.2000
In stock
Only %1 left
SKU
COM-01-029
433MHz Flat PCB IPEX Antenna is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
315/433 MHz Spring Antenna Previous
The 433MHz Flat PCB IPEX Antenna is designed for wireless communication in the 433MHz frequency band. It features an IPEX 1st Generation connector and is available as a flat PCB or flexible FPC antenna. This antenna is offered with multiple gain options and cable length options. It also supports vertical polarization and 50 Ohms impedance. The 433MHz Flat PCB IPEX Antenna is suitable for electronics, IoT devices, remote controls, and RF modules.
Features of 433MHz Flat PCB IPEX Antenna
- 433MHz frequency band
- IPEX 1st Generation connector
- Flat PCB and flexible FPC types
- Multiple gain options
- Vertical polarization
- 50 Ohms impedance
- Multiple cable length options
Specifications of 433MHz Flat PCB IPEX Antenna
- Frequency Range: 433MHz
- Connector Type: IPEX 1st Generation
- Antenna Type: Flat PCB / Flexible FPC
- Gain Option: 5dB for 433 PCB (32mm x 7mm)
- Gain Option: 6dB for 433 FPC (27mm x 17mm)
- Gain Option: 3dB for 433 FPC (32mm x 8mm)
- Gain Option: 3dB for 433 PCB (40mm x 7mm)
- Gain Option: 6dB for 433/470 FPC (45mm x 17mm)
- Impedance: 50 Ohms
- Polarization: Vertical
- Cable Length Option: 9.5cm (PCB 32mm x 7mm, FPC 32mm x 8mm)
- Cable Length Option: 8cm (FPC 27mm x 17mm, PCB 40mm x 7mm)
- Cable Length Option: 13cm (FPC 45mm x 17mm)
How to Use 433MHz Flat PCB IPEX Antenna
- Select the required antenna type and gain option.
- Connect the antenna using the IPEX 1st Generation connector.
- Install the antenna according to the available cable length and form factor.
More Info
- Datasheet: Not available
- Available in both PCB and FPC formats
