IR Infrared Flame Sensor Module
$0.3300
In stock
SKU
SEN-06-007
Volume discounts:
- +100 3 % $0.3200
- +500 6 % $0.3100
- +1000 9 % $0.3000
- +10000 12 % $0.2900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

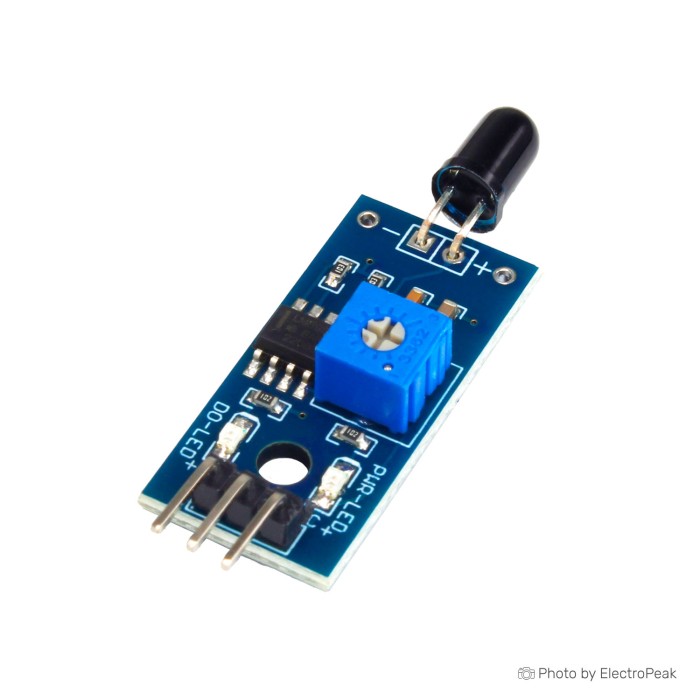

The IR Infrared Flame Sensor Module detects flames or fire by sensing infrared radiation. It is designed for fire detection systems, safety applications, and projects that require flame detection for triggering specific actions. The module identifies infrared radiation emitted by flames and provides a digital output for flame presence. Sensitivity adjustment is available on some modules for tuning the detection response. Its compact form factor includes signal pins and a screw hole for easy integration.
Features of IR Infrared Flame Sensor Module
- Infrared flame detection
- Detects infrared radiation from flames
- Digital HIGH/LOW output
- Sensitivity adjustable
- Compact module design
- Signal pins included
- Screw hole mounting
- Detection range: 760 nm to 1100 nm
- Lighter test flame distance: 80cm
- Detection angle: about 60 degrees
- Blue digital potentiometer adjustment
- Comparator output
- Strong driving ability over 15mA
Specifications of IR Infrared Flame Sensor Module
- Sensor Type: Infrared (IR) flame detection sensor
- Detection Method: Detects infrared radiation emitted by flames
- Operating Voltage: 3.3V to 5V
- Output Signal: Digital output (HIGH/LOW)
- Sensitivity Adjustment: Sensitivity adjustment available
- Form Factor: Compact module with signal pins and screw hole
- Dimensions: 3.1cm x 1.4cm
- Detection Range: 760 nm to 1100 nm
- Lighter Test Flame Distance: 80cm
- Detection Angle: About 60 degrees
- Potentiometer: Blue digital potentiometer
- Comparator Output: Clean signal, good waveform
- Driving Ability: More than 15mA
How to Use IR Infrared Flame Sensor Module
- Connect the module using the signal pins.
- Apply a 3.3V to 5V supply.
- Adjust sensitivity with the potentiometer if needed.
- Read the digital HIGH/LOW output for flame presence.
More Info
- Use the sensitivity control to tune the detection response.
- Keep the module away from excessive heat exposure.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3.3V to 5V |
| Operating Current (mA) | > 15 mA |
| Dimensions (mm) | 31 x 14 mm |
| Mounting Type | Screw holes |
| Output Type | Digital |
| Measurement Range | 760 nm to 1100 nm |
| Environmental Parameter | Flame |
| Probe Type | Non-contact |
| Relay Output | No |
