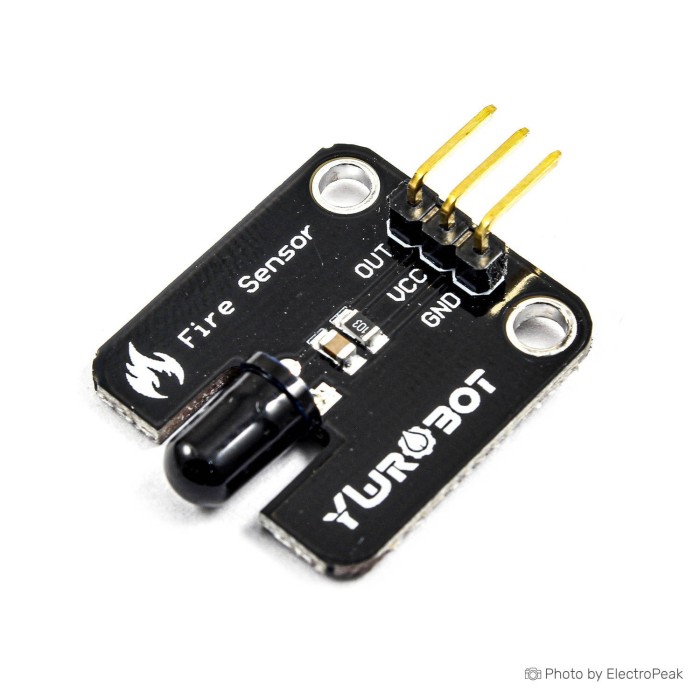

YwRobot Flame Sensor Module - Analog Output
$1.2600
In stock
SKU
sen-06-008
Volume discounts:
- +50 4 % $1.2100
- +100 6 % $1.1800
- +300 8 % $1.1600
- +500 10 % $1.1300
- +1000 12 % $1.1100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The YwRobot Flame Sensor Module is a flame detection module with analog voltage output for Arduino projects. It uses an infrared receiver diode as the probe and is designed for flame sensing applications. The module operates at 3.3V and 5V. Its compact 25 * 21mm size supports integration into electronics and robotics builds. The sensor is most sensitive to flame detection.
Features of YwRobot Flame Sensor Module - Analog Output, 3.3V, 5V
- Analog voltage output
- Infrared receiver diode probe
- Arduino 3P interface
- 3.3V and 5V operation
- Compact module size
Specifications of YwRobot Flame Sensor Module - Analog Output, 3.3V, 5V
- Name: Flame Sensor
- Manufacturing: YwRobot
- Size: 25 * 21mm
- Probe: infrared receiver diode
- Detection wavelength: 760-1100 nm
- Detection angle: about 60 ?
- Detection distance: 30-800mm
- Detection methods: partial pressure feedback
- Voltage: 3.3V, 5V
- Output: Analog Voltage
- Interface: Arduino 3P Interface SVG
- Platform: Arduino
- Note: The flame sensor is the most sensitive to the flame,
- Note that the measured distance with the flame, high temperature to prevent damage
How to Use YwRobot Flame Sensor Module - Analog Output, 3.3V, 5V
- Connect the module through the Arduino 3P interface.
- Power the module with 3.3V or 5V.
- Read the analog voltage output from the sensor.
More Info
- The sensor is most sensitive to flame.
- Keep the sensor away from high temperature to prevent damage.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3.3V, 5V |
| Dimensions (mm) | 25 * 21mm |
| Output Type | Analog Voltage |
| Measurement Range | 30-800mm |
| Environmental Parameter | Flame |
| Probe Type | Non-contact |
