ESP-201 ESP8266 WiFi Module
$3.5200
In stock
SKU
COM-03-003
Volume discounts:
- +25 4 % $3.3800
- +100 6 % $3.3100
- +300 8 % $3.2300
- +500 10 % $3.1600
- +1000 12 % $3.0900
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ESP-07S ESP8266 Wi-Fi Module Previous

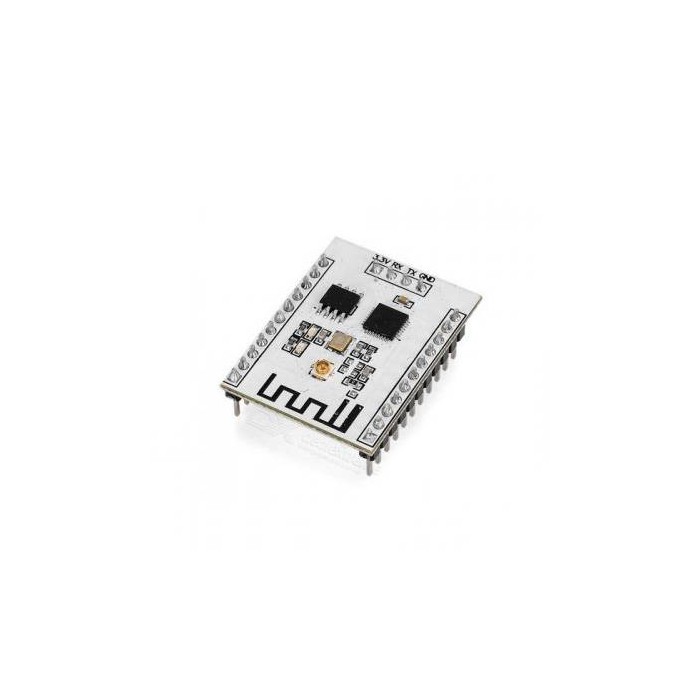

The ESP-201 ESP8266 WiFi Module is a serial wireless module based on the ESP8266 SoC. It supports WiFi communication with other devices and can also be used as an IO module. The module includes an antenna and an IPX interface on board. It operates at 3.3V and does not include a voltage regulator, so it requires a 3.3V supply. The processor is clocked at 80MHz and includes 80KB of RAM. It also provides approximately 400KB of external flash memory and several input-outputs.
Features of ESP-201 ESP8266 WiFi Module - 3.3V, 80MHz, 11 GPIO, 1 ADC
- WiFi transceiver
- IO module support
- External antenna
- IPX interface on board
- Breadboard friendly
Specifications of ESP-201 ESP8266 WiFi Module - 3.3V, 80MHz, 11 GPIO, 1 ADC
- Based on ESP8266 SoC
- Operates at 3.3V
- No voltage regulator
- Processor clocked at 80MHz
- 80KB RAM
- Approximately 400KB external flash memory
- GPIO Pins: 11
- ADC: 1
- Antenna: External/PCB
- USB-To-Serial: no
- Size 10*11mm
How to Use ESP-201 ESP8266 WiFi Module - 3.3V, 80MHz, 11 GPIO, 1 ADC
- Provide a 3.3V supply to the module.
- Connect the required input-output pins or IPX interface.
- Use the module for WiFi communication or IO operation.
More Info
- Several ESP module models exist, including ESP-01, ESP-03, and ESP-12.
- The module includes several input-outputs.
| MCU/SoC | ESP8266 |
|---|---|
| Architecture | Tensilica L106 32-bit |
| CPU Cores | Single-core Tensilica L106 |
| Clock Speed (MHz) | 80 MHz |
| UART interface Pins | 2 |
| Ethernet Support | No |
| ADC Channels | 1 |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| GPIO Current (mA) | 12mA |
| Wireless | WiFi |
| Form Factor | ESP-201 Module |
| Input Voltage (V) | 3.3V |
| Antenna Type | External IPEX/IPX, Internal Antenna |
| Bluetooth Ver. | No |
