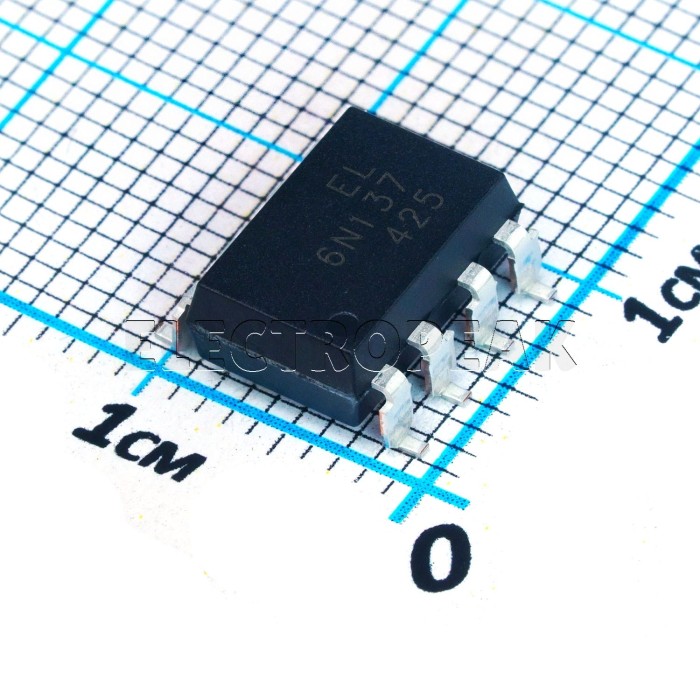

EL6N137S, High Speed Optocoupler, DIP-8

[O1-0005]
Volume discounts:
  • +100 4 % $0.2070
  • +500 6 % $0.2030
  • +1000 7 % $0.1990
  • +5000 10 % $0.1940
  • +10000 12 % $0.1900
Shop with confidence Learn More
Availability: 52795 Items
SKU
O1-0005
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$0.2150
EL6N137S, High Speed Optocoupler, DIP-8 is available to buy in increments of 10

The 6N137S optocoupler is a high-speed optocoupler designed for digital signal transmission with electrical isolation between input and output circuits. It features an LED diode and a photodetector encapsulated in an SMD-8 package. Its high-speed performance and low power consumption make it ideal for applications such as serial communications, motor drivers, and industrial control systems.

Specifications of 6N137S Optocoupler IC

  • Package Type: SMD-8
  • Supply Voltage: 4.5V to 5.5V
  • Input Current: 5mA (maximum)
  • Output Voltage: 20V (maximum)
  • Data Transfer Rate: 10 Mbps (typical)
  • Propagation Delay: 50ns (typical)
  • Isolation Voltage: 2500V RMS
  • Output Leakage Current: 10µA (maximum)
  • Operating Temperature: -40°C to +85°C
  • Applications: Digital signal transmission, serial communications, motor drivers
