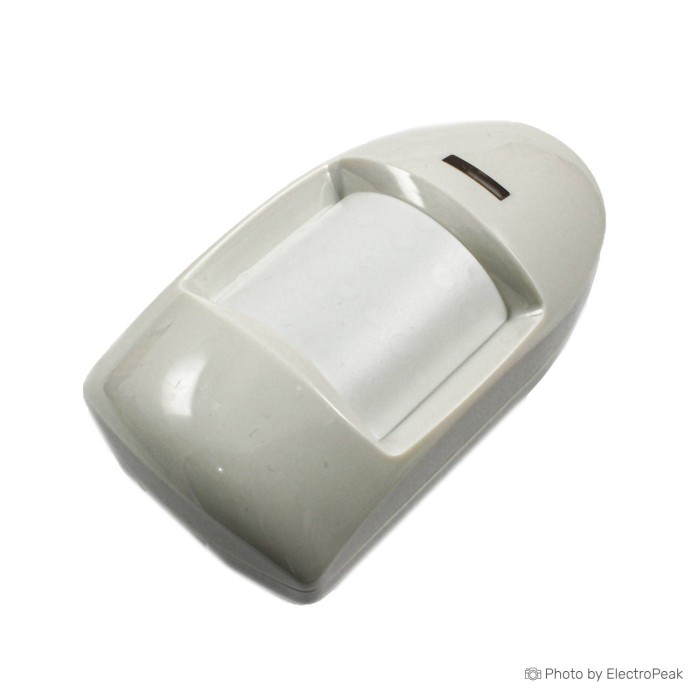

EL-55 Wired PIR Motion Sensor

EL-55 Wired PIR Motion Sensor is a passive infrared motion sensor with digital microprocessor control. It is designed for motion detection with high sensitivity and precise signal handling. The sensor supports false alarm reduction and includes digital automatic pulse conditioning. It also features bi-temperature compensation and automatic environment memory. The EL-55 Wired PIR Motion Sensor is built for wired installation and digital output operation.

Features of EL-55 Wired PIR Motion Sensor

• Digital microprocessor control
• High-sensitivity motion detection
• False alarm reduction
• Digital automatic pulse conditioning
• Bi-temperature compensation
• Automatic environment memory
• RFI, EMI, and ESD protection
• Easy LED viewing
• PCB easy lock
• Counted pulse adaptation

Specifications of EL-55 Wired PIR Motion Sensor

• Model: EL-55 wired
• Maximum range: 14 x 14 m
• Operating temperature: -10 to 50 degrees C
• Power input: 10~16V DC 5~30mA
• Detection distance: 8 to 10 m horizontal and 3 m vertical
• Detection angle: 110 degrees horizontal and 60 degrees vertical
• Installation height: less than 2.5 m
• FRI: >20v/m (1000MHz)
• Appearance size: 116×60×43 mm

How to Use EL-55 Wired PIR Motion Sensor

1. Open the housing and connect the wires.
2. Mount the base by fixing it to the wall installation point.
3. Install the sensor at a height below 2.5 m.

More Info

• The sensor uses a digital microprocessor for signal interpretation.
• The wired version includes a 2.54mm standard connector.
