Dwin T5L Intelligent 7inch HMI Touch Display
SAVE
As low as $21.9500
In stock
Only %1 left
SKU
LCD-01-283
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Dwin T5L Intelligent 2.4inch HMI Touch Display Previous

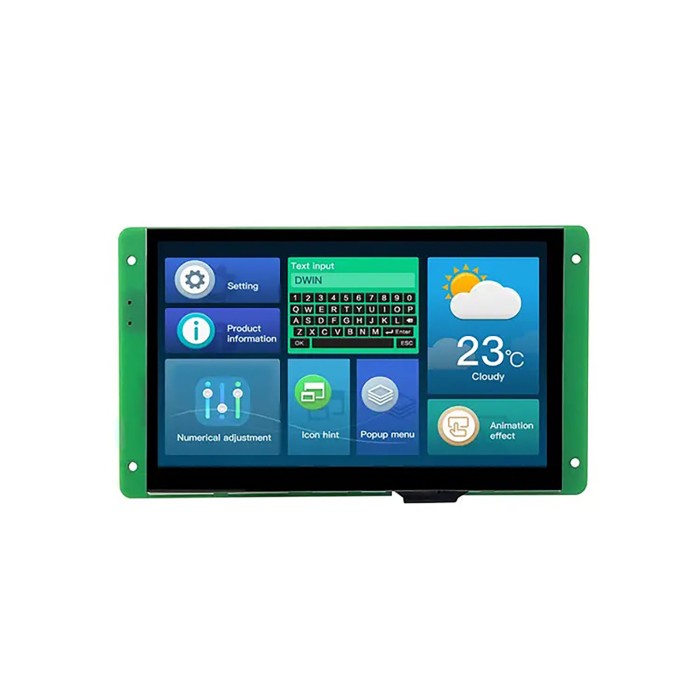

The Dwin T5L Intelligent 7 Inch HMI Touch Display is a 7-inch HMI display module for smart device interfaces. It uses the Dwin T5L0 ASIC and supports high-resolution display output, touch input options, and UART communication. The module includes onboard flash memory, SD card support, and a built-in buzzer. It is designed for use with serial communication and configurable touch panel options.
Features of Dwin T5L Intelligent 7 Inch HMI Touch Display - 800x480
- T5L0 ASIC chipset
- 7-inch TFT LCD display
- Capacitive or resistive touch support
- UART2 and UART4 communication
- Onboard flash memory
- SD card support
- Built-in buzzer
Specifications of Dwin T5L Intelligent 7 Inch HMI Touch Display - 800x480
- Dwin T5L0 ASIC
- 1MB Nor Flash
- 512KB for user database
- TV-TN, TFT LCD
- 800 × 480 pixels
- Rotation support: 0°/90°/180°/270°
- 70°/70°/40°/30° viewing angle (L/R/U/D)
- 18-bit, 6R6G6B color depth
- 200 nits brightness
- 154.08mm (W) × 85.92mm (H) active area
- Capacitive: COB structure
- Capacitive: I²C interface
- Resistive: FPC4
- Resistive: 1.0mm pitch interface
- UART2 and UART4
- TTL/CMOS mode
- RS232 mode
- Configurable communication modes
- 12KB/s typical download rate
- 16MB NOR Flash
- Fonts, images, audio
- Rewrite cycle >100,000
- FAT32
- Download speed up to 4Mb/s
- 3V passive buzzer
- Power consumption <1W
- Operating voltage: 4.5~5.5V
- Typical voltage: 5V
- Operating current: 500mA (VCC = 5V, backlight on)
- Operating current: 170mA (VCC = 5V, backlight off)
- Recommended power supply: 5V, 1A DC
How to Use Dwin T5L Intelligent 7 Inch HMI Touch Display - 800x480
- Connect the module to a 5V, 1A DC power supply.
- Use the 10-pin 1.0mm socket for power and serial communication.
- Select the capacitive or resistive touch panel version as needed.
- Load images, fonts, and audio through the 16MB flash memory or SD card.
- Choose UART2 or UART4 and set TTL/CMOS or RS232 mode.
More Info
- Suitable for serial interface HMI applications.
- Supports download through SD card or online serial port.
| Display Size | 7 inch |
|---|---|
| Display Size Range | 7 inch to 10 inch |
| Display Resolution | 800 × 480 pixels |
| Display Driver | T5L0 ASIC |
| Display Interface | I2C, UART |
| Panle Type | TN |
| Display Color Type | Full Color |
| Touchscreen Type | Capacitive |
| Backlight Type | White LED |
| Viewing Angle (°) | 70°/70°/40°/30° (L/R/U/D) |
| Operating Voltage (V) | 5V |
| Pins | 10 |
| Dimensions (mm) | 154.08mm x 85.92mm |
| Operating Current (mA) | 170mA (backlight off) to 500mA (backlight on) |
