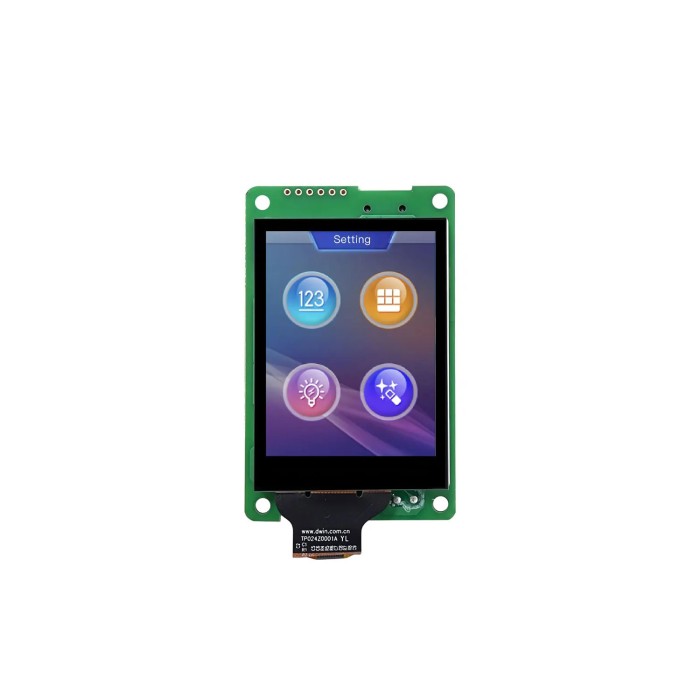

Dwin T5L Intelligent 2.4inch HMI Touch Display
$16.9500
In stock
SKU
LCD-01-290
Volume discounts:
- +25 4 % $16.3000
- +50 6 % $15.9700
- +100 8 % $15.6500
- +300 10 % $15.3200
- +500 12 % $15.0000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
4.3inch Capacitive Touch Screen - 6pin, 105x66mm Previous
The Dwin T5L Intelligent 2.4inch HMI Touch Display is a powerful and user-friendly interface for your projects. With its compact size and easy installation, this touch display offers a clear and responsive touch interface, making it ideal for various applications such as home automation and industrial control. It has a high-resolution display and supports multiple languages, providing flexibility for your designs.
Equipped with a reliable and high-quality touch panel, the Dwin T5L Intelligent 2.4inch HMI Touch Display offers precise and responsive touch control. It also has a built-in RTC and supports various communication interfaces, making it easy to integrate into your existing systems. With its affordable price and versatile use, this display is a top choice for all your human-machine interface needs. Upgrade to the Dwin T5L Intelligent 2.4inch HMI Touch Display and enhance the functionality of your projects.
Specification of Dwin T5L Intelligent 2.4inch HMI Touch Display
- LCM interface FPC40_0.5mm,
- MIPI interface
- TP interface
- Capacitive touch: 6Pin_0.5mm, IIC interface
- Resistive touch: 4Pin_1.0mm interface
- User interface10Pin_1.0mm latching socket for power supply and serial communication.
- Download rate(typical value): 12KByte/s
- Flash16 M Bytes NOR Flash, for fonts, pictures and audio files.
- Rewrite cycle: over 100,000 times
- Buzzer3V passive buzzer.
- Power: <1WSD
- card interfaceFAT32.
- Download files by SD interface can be displayed in statistics.
- Download rate: 4Mb/sPGT05 interface
- When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
| Model | Dwin T5L |
|---|---|
| Display Size | 2.4 |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 240 x 320 |
| Display Driver | T5L |
| Display Interface | UART |
| Panle Type | TN |
| Display Color Type | Full Color |
| Touchscreen Type | Resistive |
| Backlight Type | LED |
| Viewing Angle (°) | 70°/70°/50°/70° (L/R/U/D) |
| Operating Voltage (V) | 5V |
| Pins | 10 |
| Dimensions (mm) | 36.7mm (W) × 49.0mm (H) |
| Operating Current (mA) | 120mA (VCC=5V, max backlight), 60mA (VCC=5V, backlight off) |
| Brightness | 250 nits |
