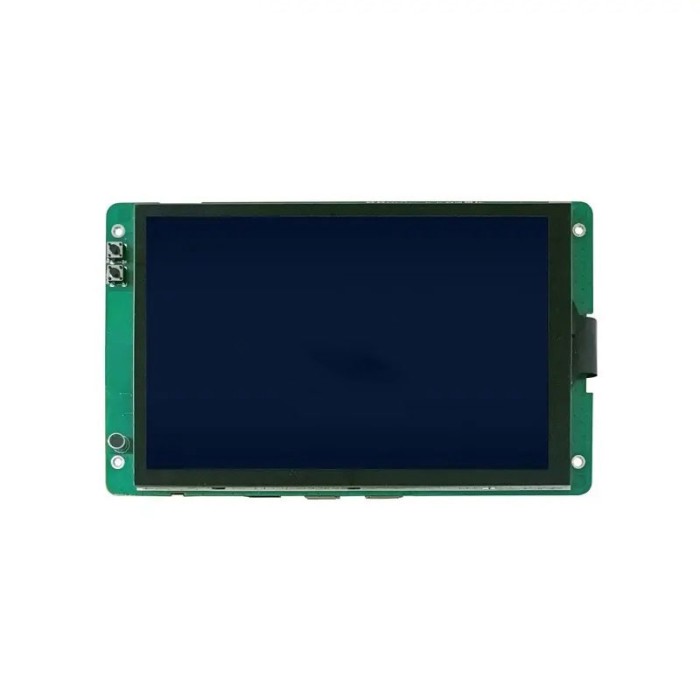

DWIN 7.0 Inch Capacitive Display For Linux/Android

The 7.0 Inch Android 11 Capacitive Display is a high-performance and versatile display for both Linux and Android devices. With its 7.0-inch size and capacitive touch technology, this display offers a smooth and responsive user experience. It also has a high-resolution display, providing clear and vibrant visuals for your applications.

Equipped with the latest Android 11 operating system, this display offers a wide range of features and compatibility for various applications. It also has a compact and user-friendly design, making it suitable for both professional and personal use. With its affordable price and practical functionality, the 7.0 Inch Android 11 Capacitive Display is a top choice for developers, gamers, and anyone looking for a high-performance display for their Linux or Android device. Upgrade to this display and enhance your device experience.

Specification of 7.0 Inch Android 11 Capacitive Display For Linux/Android

• Intelligent display terminal based on RK3566, Linux version 4.19 Android 11.

• 7.0-inch, 1280*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, capacitive touch.

• Adopt QT environment for secondary development.

• Available for multi-language, vector font library, picture library, video library and audio library.

• Compatible with network cable connection with PC to download update project.

• Compatible with WIFI, Bluetooth, microphone, camera and other rich peripherals.(Android)

• Available for RS232, RS485 and Ethernet port to connect and communicate with external devices.

• Main system parameters:

  • Motherboard level: Commercial

  • CPU: RK3566, Cortex-A55, quad-core

  • OS” Android 11

  • FLASH: 8Gbytes EMMC

  • RAM: 2Gbytes DDR4

• Display parameters:

  • Color: 16.7M (16777216) colors 24 bit color 8R8G8B

  • Panel Type: IPSIPS process, TFT LCM with wide viewing angle

  • Viewing Angle: 85/85/85/85 (L/R/U/D)

  • Active Area (A.A.)94.20mm (W)*150.72mm (H) 800*1280 Pixel

  • Visible Area (V.A.)94.60mm (W)*151.12mm (H) 800*1280 Pixel

  • Resolution: 800*1280 Pixel Available for 0°/90°/180°/270°rotated display

  • Backlight: LED, ≥20000H (time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

  • Brightness: 300nit, 100 levels adjustment (It's not recommended to set brightness to 1%~30% of the maximum, which may lead to LCD flicker.)

• Power and Voltage

  • Power Voltage: 7~36VDC (Typically 12v)

  • Operation Current (VCC = +12V, Backlight on): 260mA

  • Recommended power supply: 12V 1A DC

• Working Temperature (60%RH at 12V): -10~50℃
• Working Humidity (@25 ℃): 10~90% (RH) Typically 60%
  Interfaces:
• 2-way RS232 (UART5 & UART9)
• 1-way RS485 (UART8)
• 1-way TTL/COMS (UART0)
• USB Interface: 3-way (HOST x 2, OTG x 1)
• Headphone Interface: 1-way (3.5mm spacing interface)
• Speaker Interface: 1-way (2Pin 1.25mm pitch interface)
• Microphone Interface: 1-way (2Pin 1.25mm pitch interface)
• Camera Interface: 1-way (USB)
• SD Card Interface: 1-way (Drawer type card slot (Max 64G))
• LAN Interface: 1-way (10/100Mbps)
• WIFI Module: 1-way (IEEE 802.11Bb/g/n,2.4G,Bluetooth)
• RTC: 1-way (Button cell for power supply. Accuracy: ±20ppm @‌25℃)

For more information, please visit makers webpage.
