Dual Serial to USB Module Programmable ESP8266/ESP32 Burning
$4.9500
In stock
SKU
PRO-01-032
Volume discounts:
- +25 4 % $4.7500
- +100 6 % $4.6500
- +300 8 % $4.5500
- +500 10 % $4.4600
- +1000 12 % $4.3600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
NT1-B Serial to Ethernet Transmission Module Previous

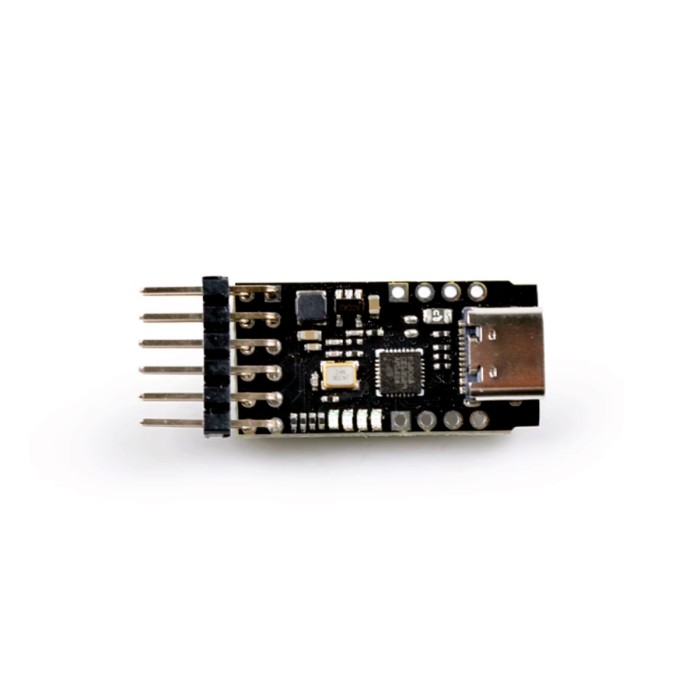

Dual USB To TTL Serial Module For ESP8266/ESP32 Burning is designed for programming and serial communication with ESP8266, ESP8285, and ESP32 microcontrollers. It uses a USB Type-C interface for computer connection and an onboard GD32F150G8 32-bit Cortex-M3 MCU. The module is powered by direct 5V input and includes a DC-DC Buck circuit for 5V to 3.3V high current output. It is also intended for programming chips such as Kendryte K210. The interface uses BOOTx and RSTx control through DTR / RTS. This module is built for ESP burning, TTL serial access, and electronics development.
Features of Dual USB To TTL Serial Module For ESP8266/ESP32 Burning
- USB Type-C connection
- Onboard GD32F150G8 MCU
- 5V direct input support
- 3.3V high current output
- DTR / RTS control
- Dual UART support
Specifications of Dual USB To TTL Serial Module For ESP8266/ESP32 Burning
- Input voltage: 5V
- Fuse: 6V2A
- Output voltage: 3.3V
- Output current: high current
- Microcontroller: GD32F150G8 32-bit Cortex-M3
- USB interface: USB Type-C
- Serial interface: 2x6P
- Pin pitch: 2.54mm
- Pin type: curved pin
- UART0: DTR controls RST0
- UART0: RTS controls BOOT0
- UART1: DTR controls BOOT1
- UART1: RTS controls RST1
- BOOT0 output mode: push-pull output 3.3V
- RST0 output mode: open-drain output
- BOOT1 output mode: open-drain output
- RST1 output mode: open-drain output
How to Use Dual USB To TTL Serial Module For ESP8266/ESP32 Burning
- Connect the module to a 5V power source.
- Use the USB Type-C interface to link it to a computer.
- Connect the 2x6P serial interface to the target device.
More Info
- Designed for ESP8266, ESP8285, and ESP32 programming.
- Also intended for Kendryte K210 programming.
- DTR / RTS does not follow RS-232 definitions.
| Interface Type | USB, UART |
|---|---|
| Operating Voltage (V) | 5V |
| Mounting Type | Connector |
| Interface Category | USB to TTL Converter |
| Output Type | UART |
| Channels | 2-channel |
| Chipset | GD32F150G8 32-bit Cortex-M3 |
| Voltage Range | 3.3V, 5V |
| Protocols | UART |
| Conversion Type | USB to TTL |
