NT1-B Serial to Ethernet Transmission Module
$5.2500
In stock
SKU
COM-04-010
Volume discounts:
- +25 4 % $5.0500
- +50 6 % $4.9500
- +100 8 % $4.8500
- +300 10 % $4.7500
- +500 11 % $4.6500
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
CH340G USB to TTL Converter Module
Previous
Description:

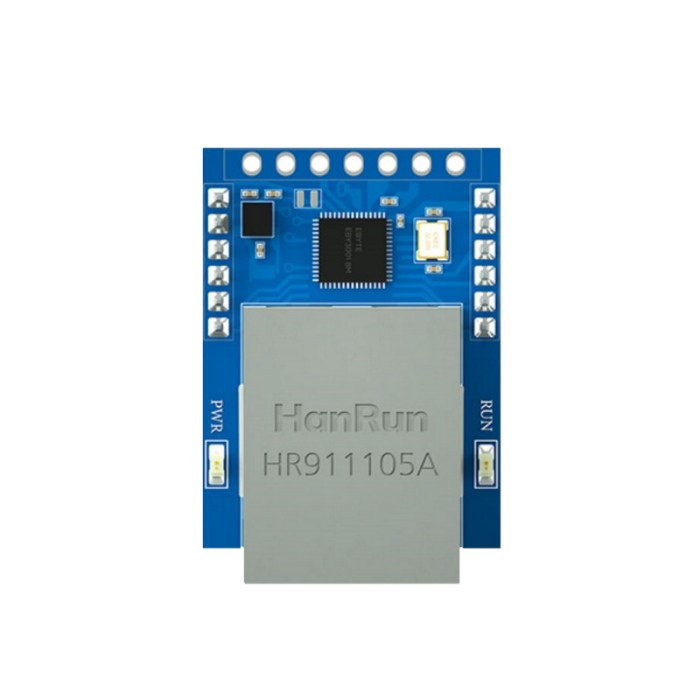

NT1-B is a module (also known as a "super-gate") that enables the transmission of serial data and Ethernet data. The product comes with an RJ45 connector and a pin package. Can meet all types of TTL level serial devices, MCU networking functions.
Parameters:
- Operating voltage: 3.0 ～ 5.5V（DC）
- Operating current: 9mA @ 5V
- Interface: TTL level serial port (pin), mesh (RJ45)
- Serial level: TTL level
- Working mode: TCP Server,TCP Client,UDP Server,UDP Client (Default TCP Server)
- Socket connection: Supports 6 ways
- Network protocol: IP,TCP/UDP,IPv4
- How IP is obtained: DHCP, static IP (default static IP)
- Domain name resolution: Backing
- How it's configured: Web, configuration tools, AT instructions
- IP address: Customizable (default 192.168.3.7)
- The local port: Customizable (default 8887)
- Subnet mask: 255.255.255.0
- Gateway: Customizable (default 192.168.3.1)
- Target IP: Customizable (default 192.168.3.3)
- The destination port: Customizable (default 8888)
- Network cache: 512 Byte
- Serial cache: 512 Byte
- Packaging mechanism: 512 Byte
- Serial Port Rate: 1200 to 230400 bps (default 115200)
- The data bit: 5, 6, 7, 8 (default 8)
- Stop bit: 1, 2 (default 1)
- Check bit: None, Odd,Even,Mark,Space（Default None）
- Flow control: RTS/CTS,DSR/DTR,XON/XOFF, NONE (Default NONE)
- Product size: 35 x 22 x 23.5mm (long x width x high)
- Product weight: 10g ± 1g
- Working temperature and humidity: -40 to .85C, 5% to 95%RH (no condensation)
- Store temperature and humidity: -40 to 105 degrees C, 5% to 95% RH (no condensation)
