$3.9500

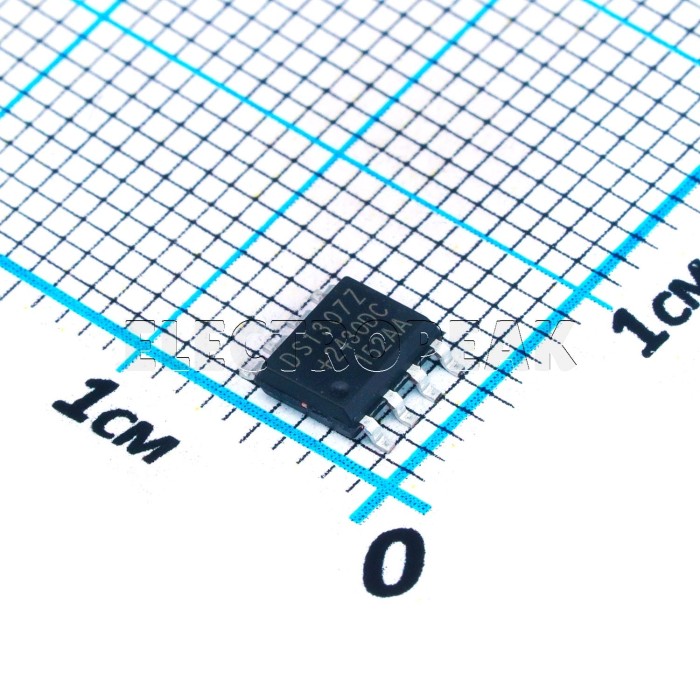

The DS1307Z+ is a low-power serial real-time clock (RTC) that provides time and date information in binary-coded decimal (BCD) format. It includes 56 bytes of battery-backed non-volatile SRAM and communicates with microcontrollers via an I²C interface. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information, with automatic leap-year corrections valid up to 2100. Additionally, it features a built-in power-sense circuit that detects power failures and automatically switches to the backup supply, ensuring continuous timekeeping during power outages.
Specifications of DS1307 Serial Real-Time Clock
- Type: Clock/Calendar
- Memory: 56-byte non-volatile SRAM
- Interface: I²C, 2-wire serial
- Supply Voltage: 4.5V to 5.5V
- Backup Battery Voltage: 2V to 3.5V
- Timekeeping Current: Up to 200µA at 5V
- Package: SOIC-8 (3.90mm width)
- Operating Temperature Range: 0°C to 70°C
| Package | SO-8 (SOP-8) |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | 0 C° |
| Operating Temperature Max | +70 C° |
| Function | Calendar, Clock |
| Mounting Type | SMD/SMT |
| Components - Type | Real Time Clock |
