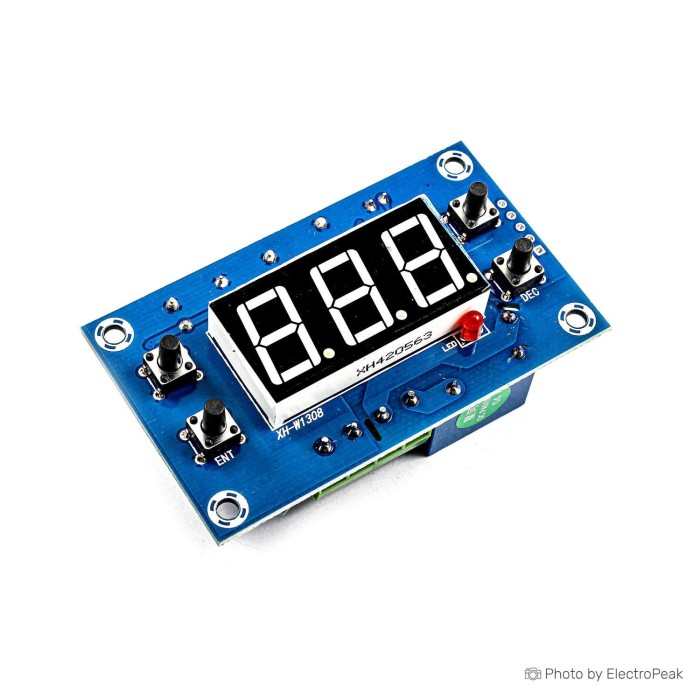

XH-W1308 Digital Thermostat Temptrature Controller Module
$4.2500
In stock
SKU
REL-01-034
Volume discounts:
- +25 4 % $4.0600
- +100 7 % $3.9700
- +300 9 % $3.8700
- +500 11 % $3.7800
- +1000 13 % $3.6900
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
High-Power Dual MOSFET Switch Module - 15A PWM Previous
XH-W1308 Digital Thermostat Temperature Controller Module is a temperature-controlled relay module for measuring, displaying, and controlling temperature. It can switch the relay on or off when the temperature rises above or falls below the set point. The set temperature can be adjusted using the onboard buttons. An external NTC temperature sensor provides temperature sensing, and an LED indicator shows whether the temperature is above or below the base value. Connect the module to the power supply according to the wiring diagram and connect the heating or cooling load to the output.
Features of XH-W1308 Digital Thermostat Temperature Controller Module
- Temperature control and measurement
- Relay switch output
- Onboard temperature setting
- NTC temperature sensor input
- LED temperature status indicator
- External load control
Specifications of XH-W1308 Digital Thermostat Temperature Controller Module
- Model: XH-W1308
- Power supply: 12V DC
- Maximum current: 10A
- External temperature sensor: NTC
- Cable length: 1 meter
- Waterproof cable
- Working temperature: -55 to 120 degrees Celsius
- Accuracy: 0.1± degrees Celsius
- Total size: 100x48x28 mm
- Screen size: 37x18 mm
How to Use XH-W1308 Digital Thermostat Temperature Controller Module
- Connect the module to a 12V DC power supply.
- Wire the heating or cooling equipment to the output.
- Use the onboard buttons to set the desired temperature.
More Info
- Temperature can be controlled based on the selected set point.
- The module includes an external NTC sensor and LED status indication.
| Operating Voltage (V) | 12V |
|---|---|
| Operating Temp (°C) | -55 to 120 °C |
| Dimensions (mm) | 100x48x28 mm |
| Mounting Type | Panel Mount |
| Control Type | Relay (Electromechanical) |
| Channel Count | 1 |
| Switching Capacity | 10A/250VAC |
| Load Current (A) | 10A |
| Chipset | XH-W1308 |
| Relay Type | Relay output |
| Display Type | LED |
| Material | Plastic |
| Input Type (AC/DC) | DC |
| Accuracy | ±0.1 °C |
