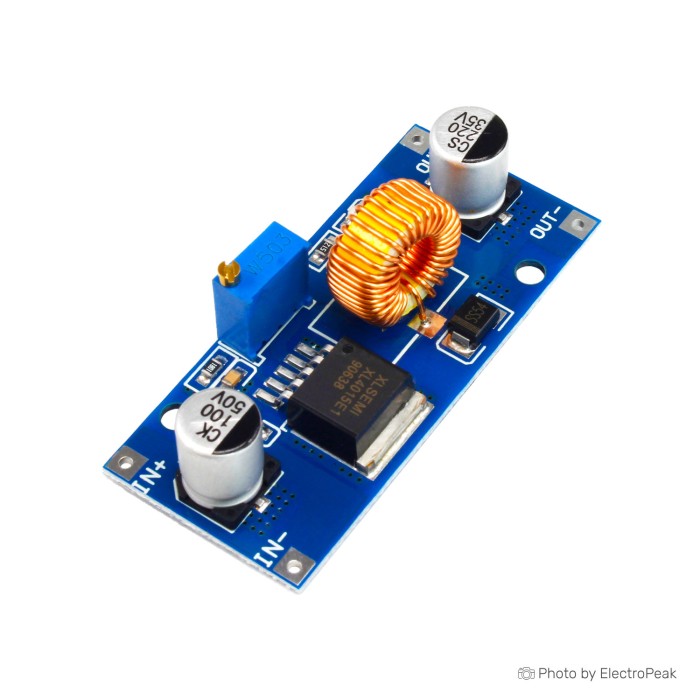

XL4015 DC/DC Step-Down Regulator Module
$0.7500
In stock
SKU
BAT-02-089
Volume discounts:
- +50 4 % $0.7200
- +100 5 % $0.7100
- +300 8 % $0.6900
- +500 9 % $0.6800
- +1000 12 % $0.6600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Mini 360 1.8A DC Step-Down Buck Converter Power Module Previous
XL4015 DC/DC Step-Down Regulator Module is a DC to DC converter module for reducing DC voltage with adjustable output settings. It uses the XL4015 chip and operates with a constant switching frequency of 180 kHz. The module is designed for high efficiency and a compact form factor. It supports overheat protection and short circuit protection. The output voltage can be adjusted with the multi-turn screw. If the output voltage matches the input voltage, turn the multi-turn screw until the output changes.
Features of XL4015 DC/DC Step-Down Regulator Module
- DC to DC step-down conversion
- XL4015 chip
- Constant 180 kHz switching frequency
- High efficiency
- Overheat protection
- Short circuit protection
- Adjustable output voltage
Specifications of XL4015 DC/DC Step-Down Regulator Module
- Chip: XL4015
- Input Voltage: 8-36V (DC)
- Please do not try higher than 38V
- Output voltage: 1.25-32V (DC)
- Maximum output current: 5 amps
- Maximum output power: 75 watts
- Working frequency: 180 kHz
- Working temperature: -40 to +85 centigrade
- Efficiency: up to 96%
- Voltage regulation: less than 0.8%
- Short circuit protection limit: up to 8 amps
- Size: 5.4x2.3x1.5cm
How to Use XL4015 DC/DC Step-Down Regulator Module
- Connect the DC input within the specified input voltage range.
- Adjust the multi-turn screw to set the desired output voltage.
- If the output voltage equals the input voltage, keep turning the screw until the output voltage changes.
More Info
- Suitable for DIY adjustable power supply applications.
- Suitable for 24V notebook power supply applications.
- Suitable for industrial equipment applications.
