DC/DC Step-Up Regulator Module - 250W
$1.7500
In stock
SKU
BAT-02-090
Volume discounts:
- +50 5 % $1.6700
- +100 7 % $1.6300
- +300 9 % $1.5900
- +500 11 % $1.5500
- +1000 13 % $1.5200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XL4015 DC/DC Step-Down Regulator Module Previous

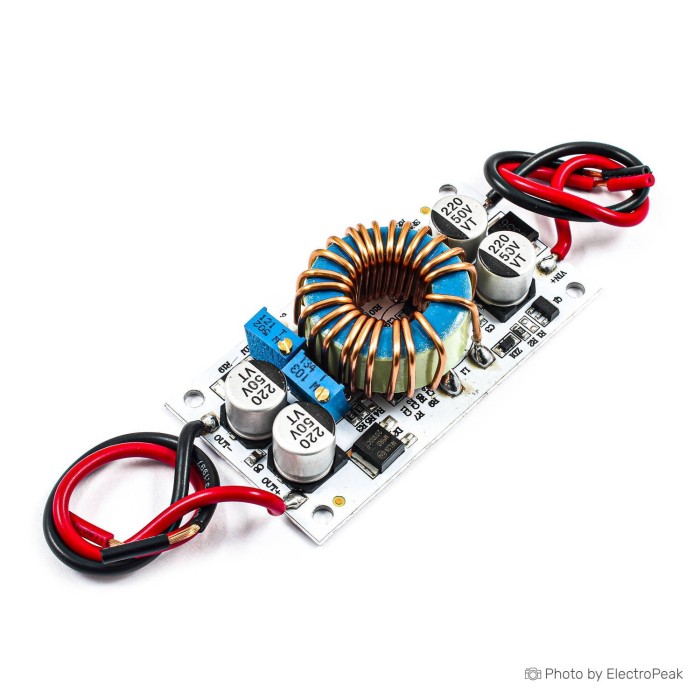

DC/DC Step-Up Regulator Module - 250W is a DC to DC boost converter module with adjustable output voltage and constant current control. It accepts a wide DC input range and provides a higher adjustable output voltage for electronics, robotics, and power supply applications. The module includes overcurrent protection and input reverse connection protection. It operates at 150 kHz and supports high conversion efficiency up to 96%. The module is designed for compact installation and wired output connection.
Features of DC/DC Step-Up Regulator Module - 250W, 10-50V
- Adjustable output voltage
- Constant current control
- Overcurrent protection
- Input reverse connection protection
- High conversion efficiency
- Compact module size
Specifications of DC/DC Step-Up Regulator Module - 250W, 10-50V
- Input voltage: 8.5-48 V DC
- Output voltage: 10-50 V
- Input current: Maximum 10 A
- Output constant current: 0.2-8 A
- Maximum conversion efficiency: 96%
- Working frequency: 150 kHz
- Power: 250 W
- Working temperature: -40 to +85 C
- Size: 70x36x13 mm
- Weight: 50 g
- Overcurrent protection: Yes
- Input reverse connection protection: Yes
How to Use DC/DC Step-Up Regulator Module - 250W, 10-50V
- Connect the DC input within the specified input voltage range.
- Adjust the output voltage as needed using the module adjustment control.
- Use the wired output connection for your load.
More Info
- When the output voltage matches the input voltage and does not change, turn the multi-turn adjustment counterclockwise until the output voltage changes.
- For input current above 8 A, improve the heat dissipation system.
| Weight (g) | 50 |
|---|
