DC-DC Step-Down Regulator Module- 12V to 5V3A
$0.3350
In stock
SKU
BAT-02-141
Volume discounts:
- +100 4 % $0.3220
- +500 6 % $0.3160
- +1000 7 % $0.3100
- +5000 9 % $0.3040
- +10000 11 % $0.2970
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
LM2596HVS 3A DC/DC Step-Down Regulator Module
Previous

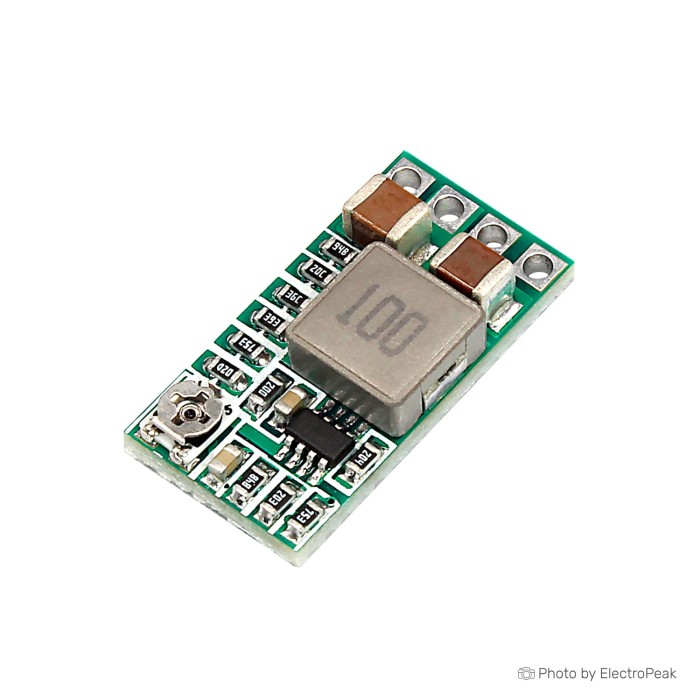

Description of DC-DC Step-Down Regulator Module:
12v-24v to 5V 3A Super Mini Super Size DC Step-Down Module With 97.5 percent Efficiency (20x10mm) uses an integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient. This Module can be used as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc.)
Specifications of DC-DC Step-Down Regulator Module:
- Input Voltage: DC 4.5-24V
- Output Voltage: integration adjustable and fixed output, back side can choose fixed output voltage
- Adjustable Range:0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
- Output Current:3A (max),actual testing input 12V output 1.5A
- Transform Efficiency:97.5%(max) (6.5 to 5V 0.7A)
- Switch Frequency:500KHz
- Output Ripple Wave:20mV (12V to 5V 3A) 20m band width
- Operating Temp.:-40 Celsius-85 Celsius
- Output Overvoltage Protection: no
- Static Current:0.85MA
- Load Adjust Rate:+-1%
- Voltage Adjust Rate:+-0.5%
- Dynamic Response Speed:5% 200uS
- Output Short Circuit Protection: yes
- Input Transposition Protection: no
- Enable Control: yes
