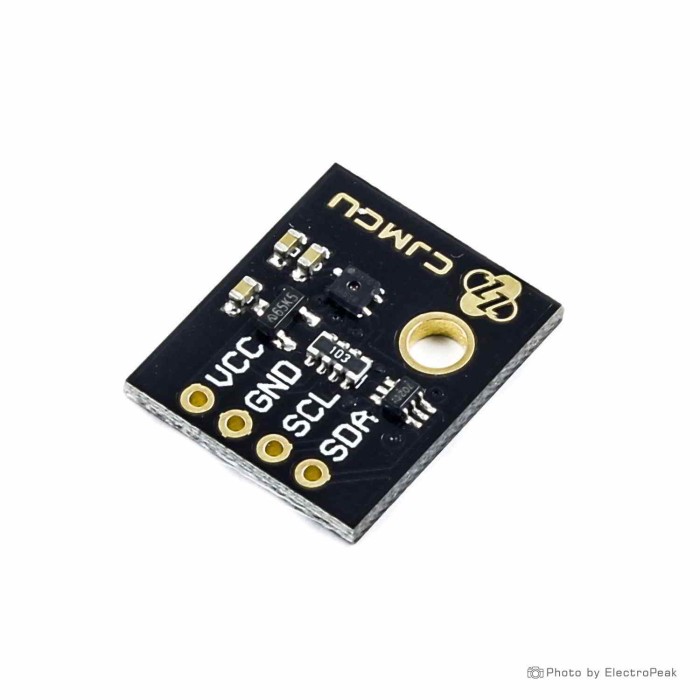

CJMCU SHTC1 Temperature Humidity Sensor Module - I2C Interface
$6.5000
In stock
SKU
SEN-10-061
Volume discounts:
- +25 4 % $6.2400
- +50 6 % $6.1100
- +100 8 % $5.9800
- +300 10 % $5.8500
- +500 12 % $5.7100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MAX31865 PT100/PT1000 RTD-to-Digital Converter Board Previous
CJMCU SHTC1 Temperature Humidity Sensor Module - I2C Interface is a small digital sensor module for temperature and humidity measurement. It uses CMOSens® technology and includes a capacitive humidity sensor, a bandgap temperature sensor, analog and digital signal processing, an A/D converter, calibration data memory, and a fast I2C digital interface. The compact DFN package supports use in limited-space electronic designs. It is designed for low power consumption, high accuracy, and fast power-up and measurement time.
Features of CJMCU SHTC1 Temperature Humidity Sensor Module - I2C Interface
- Digital temperature and humidity sensing
- I2C fast mode interface
- Ultra-compact DFN package
- Ultra-low power consumption
- Fast power-up and measurement time
- Fully calibrated
- Reflow solderable
Specifications of CJMCU SHTC1 Temperature Humidity Sensor Module - I2C Interface
- Power Supply: DC 3V to 5V
- Typical Accuracy: ±3% RH
- Typical Accuracy: ±0.3°C
- Package Size: 2 × 2 × 0.75 mm
- Package Type: DFN
- Power-up and Measurement Time: within 1 ms
- Power Consumption: Ultra-low
How to Use CJMCU SHTC1 Temperature Humidity Sensor Module - I2C Interface
- Connect the module to a DC 3V to 5V supply.
- Use the I2C interface for digital communication.
- Read temperature and humidity data from the module.
More Info
- Suitable for high-volume consumer electronics applications.
- Uses a 2 × 2 × 0.75 mm DFN package.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 3V to 5V |
| Operating Current (mA) | Typical 430µA (Measuring), 2nA (Sleep) |
| Operating Temp (°C) | -30 to 100 °C |
| Dimensions (mm) | 2 × 2 × 0.75 mm |
| Mounting Type | SMD (Surface Mount) |
| IP Rating | None |
| Output Type | I2C |
| Accuracy | ±3% RH and ±0.3°C |
| Resolution | 12-bit (Relative Humidity), 14-bit (Temperature) |
| Response Time | within 1 ms |
| Measurement Range | 0 to 100% RH, -30 to 100 °C |
| Environmental Parameter | Temperature And Humidity |
| Probe Type | Surface Mount |
| Chipset | SHTC1 |
| Humidity Range | 0 to 100% RH |
| Relay Output | No |
| Humidity Accuracy | ±3% RH |
| Protocols | I2C |
| Temp Accuracy | ±0.3°C |
