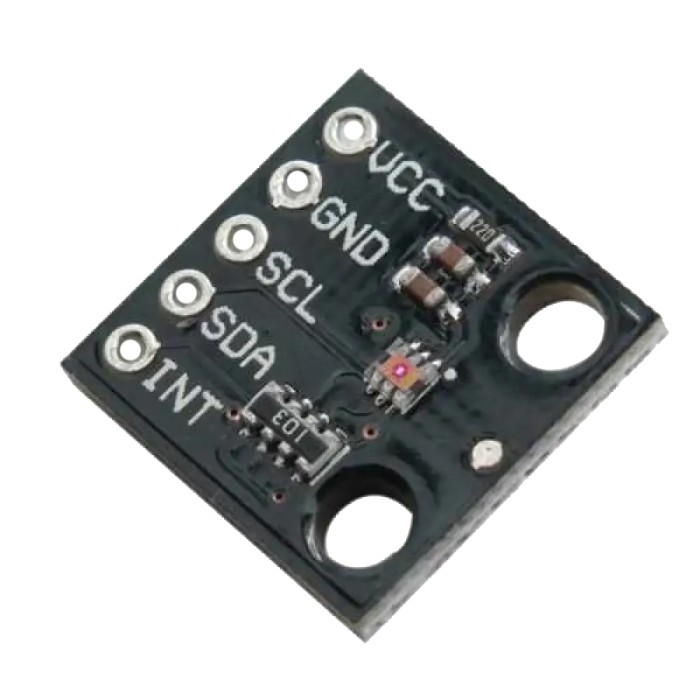

CJMCU-29125 ISL29125 RGB Color Light Sensor Module
$6.9500
In stock
SKU
SEN-11-068
Volume discounts:
- +25 4 % $6.6400
- +50 7 % $6.4900
- +100 9 % $6.3400
- +300 11 % $6.1800
- +500 13 % $6.0300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XH-M131 12V Photoresistor Relay Module Previous
The CJMCU-29125 ISL29125 RGB Color Light Sensor Module is a low-power, high-sensitivity module designed to detect red, green, and blue light. Equipped with the ISL29125 chip, it provides accurate RGB spectral response and operates efficiently in various lighting conditions, from sunlight to dark rooms. The module features an I2C interface for easy integration and offers selectable sensitivity ranges for optimized performance. It supports user-programmable interrupt thresholds to minimize false triggers and operates with low power consumption, making it ideal for a range of applications including smartphones, tablets, and industrial lighting.
Specifications of CJMCU-29125 ISL29125 RGB Color Light Sensor Module
-
Chip: ISL29125
-
Input Voltage: 2.25V ~ 3.63V
-
Operating Current: 56µA
-
Shutdown Current: 0.5µA
-
Output Type: Digital
-
Interface: I2C
-
ADC: 16 bits
-
Two Optical Sensitivity Ranges:
-
Range 0: 5.7m lux to 375 lux
-
Range 1: 0.152 lux to 10,000 lux
-
-
Pin Number: 5 Pins
-
Operating Temperature: -40°C ~ +85°C
-
Dimensions: 15x15 mm
Datasheet of CJMCU-29125 ISL29125 RGB Color Light Sensor Module
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2.25V ~ 3.63V |
| Operating Current (mA) | 0.056 mA |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 15x15 mm |
| Output Type | Digital |
| Resolution | 16 bits |
| Wavelength Range | 400-700nm |
| Chipset | ISL29125 |
| Sensor Type | Color Sensor |
| Output Interface | Digital |
| Application | industrial lighting, smartphones, tablets |
