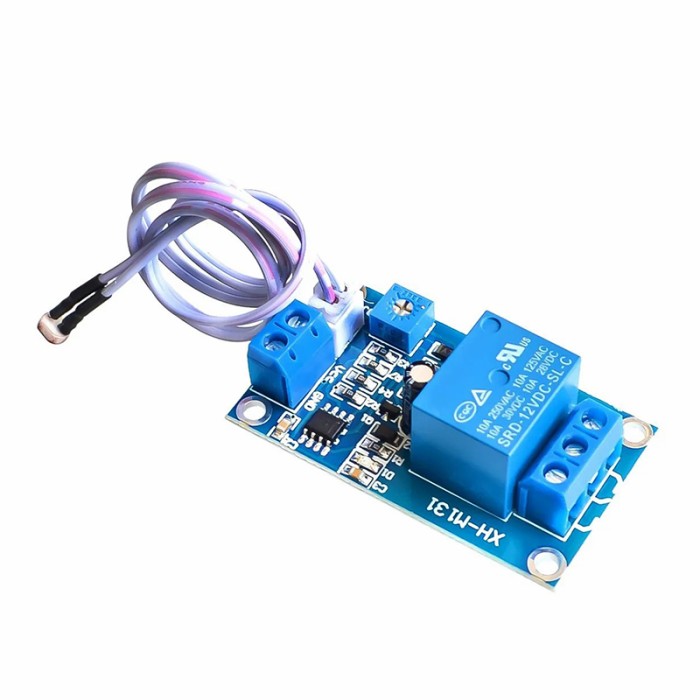

XH-M131 12V Photoresistor Relay Module
$0.9500
In stock
SKU
SEN-11-067
Volume discounts:
- +50 4 % $0.9100
- +100 5 % $0.9000
- +300 7 % $0.8800
- +500 9 % $0.8600
- +1000 12 % $0.8400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TCD1304 Linear 16-bit AD Wavelength Meter With USB Interface Previous
The XH-M131 Photoresistor Relay Module is a 12V DC light-sensitive control module for automated switching applications. It uses a photoresistor (LDR) to detect ambient light intensity and drive relay switching based on the set threshold. The module includes adjustable sensitivity through a potentiometer. It is designed for light-based control in electronics and automation projects.
Features of XH-M131 Photoresistor Relay Module - 12V DC
- Light-sensitive relay switching
- Photoresistor (LDR) sensing
- Adjustable sensitivity threshold
- 12V DC operation
- Compact module design
Specifications of XH-M131 Photoresistor Relay Module - 12V DC
- Operating voltage: 12V DC
- Average current: <50mA
- Relay output: Up to 10A at 250V AC
- Relay output: Up to 10A at 30V DC
- Light sensor: Photoresistor (LDR)
- Adjustable sensitivity: Potentiometer for adjusting light sensitivity threshold
- Output signals: Relay switching
- Operating temperature: -20°C to 60°C
- Dimensions: 53x31x18mm
- Applications: Automatic lighting
- Applications: Garden lights
- Applications: Street lights
- Applications: Other light-sensitive switching applications
How to Use XH-M131 Photoresistor Relay Module - 12V DC
- Connect the module to a 12V DC power supply.
- Adjust the potentiometer to set the light sensitivity threshold.
- Use the relay output for light-based switching control.
More Info
- Suitable for electronics and automation projects.
- Uses relay switching for ambient light control.
