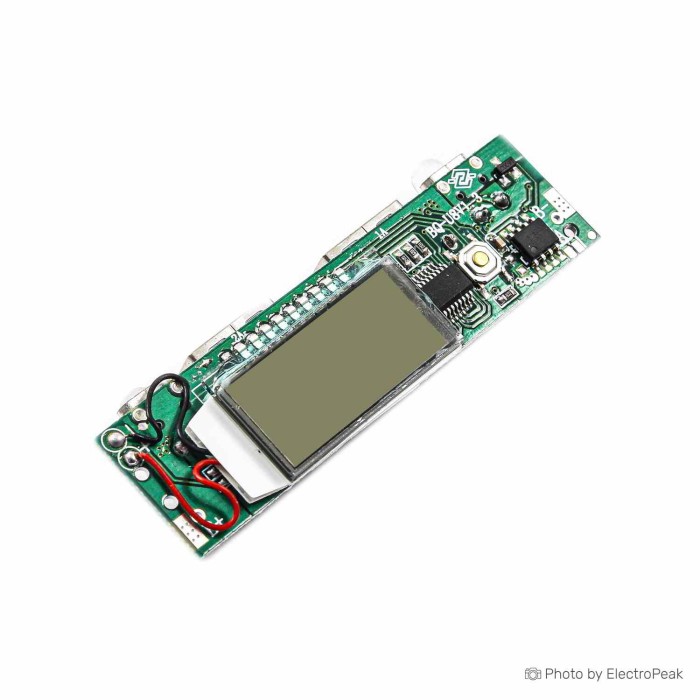

Dual USB Li-ion Battery Power Bank Charger Module - 5V, 1A, 2A

The Dual USB Li-Ion Battery Power Bank Charger Module is designed for power bank builds with LCD status monitoring and dual USB output support. It provides two USB outputs with 1A and 2A currents for simultaneous charging. The module includes an LCD display for battery charge level and charger status. It supports standard charging and fast charging modes. This module is suitable for lithium battery charging and power bank assembly.

Features of Dual USB Li-Ion Battery Power Bank Charger Module - 5V, 1A, 2A

• Dual USB outputs
• LCD digital display
• Standard charging mode
• Fast charging mode
• Power bank project support

Specifications of Dual USB Li-Ion Battery Power Bank Charger Module - 5V, 1A, 2A

• Input Voltage: 5V
• Input Current: 1A
• Input Current: 2A
• USB Output Voltage: 5V
• USB Output Current: 1A
• USB Output Current: 2A
• Dimensions: 160x28x21.5 mm
• Charging Mode: Standard charging at 5V 1A
• Charging Mode: Fast charging
• Fast Charging Activation: Holding the button for 5 seconds
• Display: LCD
• Display Function: Battery level
• Display Function: Charging status
• Application: Building power banks
• Application: Charging lithium batteries
• Support Batteries Type: 18650
• Capacity: max 30000 mah
• Input Parameters: Double Android charging interface 5V/1A
• Input Parameters: Double Android charging interface 5V/2A
• Conversion Rate: 90%
• LED Lights: Dual LED lights

How to Use Dual USB Li-Ion Battery Power Bank Charger Module - 5V, 1A, 2A

1. Connect the battery with correct + and - polarity.
2. Select standard charging or fast charging as needed.
3. Use the USB outputs to charge connected devices.

More Info

• The module includes an LCD digital display.
• The module includes dual LED lights.
