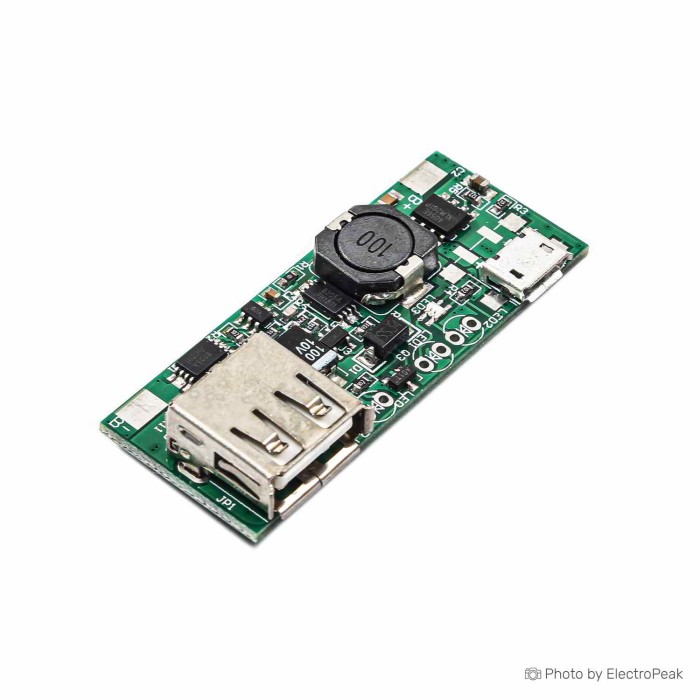

Li-ion Battery Power Bank Charger Module - 5V, 1A

Li-Ion Battery Power Bank Charger Module is a charger and discharger module for portable power supply builds that use lithium-ion batteries. It supports charging through a 5V input and provides a 4.2V charge to the connected battery output. The module uses a micro USB female port for the input interface and a standard USB female port for the output interface. It is intended for lithium-ion battery-based portable power sources and includes charging protection. Indicator lights show charging, full charge, and load status.

Features of Li-Ion Battery Power Bank Charger Module - 5V, 1A

• 5V, 1A charging input
• 5V, 1A discharge output
• Micro USB female input port
• Standard USB female output port
• Charge status indicator lights
• Supports lithium-ion battery power bank builds
• Charging protection included

Specifications of Li-Ion Battery Power Bank Charger Module - 5V, 1A

• Charging Input: 5V 1A
• Input Interface: Micro USB Female Port
• Discharge Output: 5V 1A
• Output Interface: Standard USB Female Port
• Dimensions: 50 x 20 x 10 mm
• Indicator: Charging - Red
• Indicator: Full - Green
• Indicator: Load - Blue
• Weight: 6.5g
• Transit Current: 180 uA
• Overcharge Protection: 4.3v
• Overcharge Cutoff: 4.1v
• Overdischarge Protection: 2.9v
• Overdischarge Cutoff: 3v
• Allowed Batteries: Lithium Polymer Batteries
• Allowed Batteries: 18650 Lithium Batteries
• Allowed Batteries: Mobile Phone Batteries for Standard 3.7V Batteries
• Disallowed Batteries: Dry Batteries
• Disallowed Batteries: Nickel-Metal Hydride Batteries
• Disallowed Batteries: Iron Lithium Polymer Lithium Batteries
• Battery Output Charge Voltage: 4.2V

How to Use Li-Ion Battery Power Bank Charger Module - 5V, 1A

1. Connect a 5V input source to the micro USB female port.
2. Connect the compatible battery to the battery output.
3. Use the standard USB female port for discharge output.
4. Check the indicator light for charging, full charge, or load status.

More Info

• Suitable for portable power supplies using lithium-ion batteries.
• Multiple batteries can be connected to the battery input to increase supply capacity.
