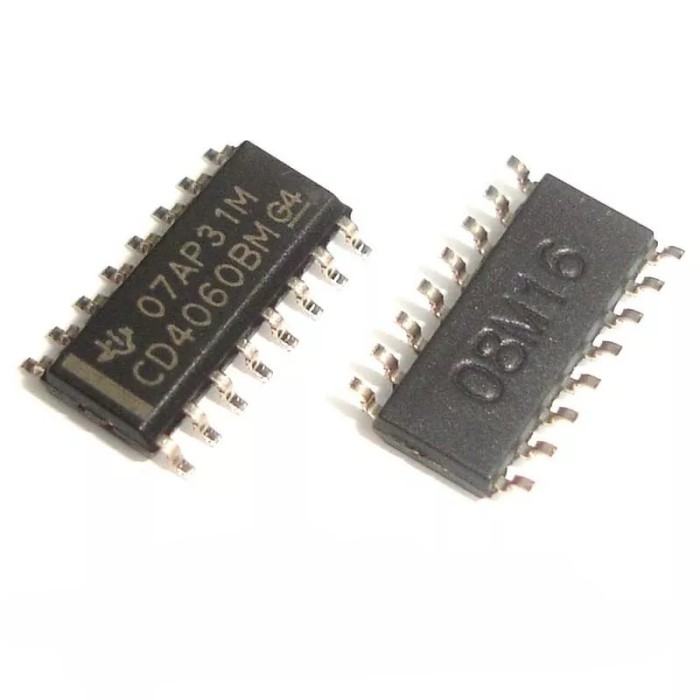

CD4060BM, Counter IC, DIP-16
$0.0520
In stock
SKU
S1-0103
Volume discounts:
- +100 4 % $0.0500
- +500 6 % $0.0490
- +1000 8 % $0.0480
- +5000 10 % $0.0470
- +10000 12 % $0.0460
CD4060BM, Counter IC, DIP-16 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CD4017BE, Counter IC, DIP-16 Previous
The CD4060BM Binary Counter IC is a 14-stage binary counter/divider and oscillator in an SOIC-Narrow-16 package. This CMOS IC counts clock signals and can function as an oscillator in digital circuits. It is designed for electronics and digital logic applications where counter and divider functions are required. The CD4060BM combines counting and oscillator capability in a compact package.
Features of CD4060BM Binary Counter IC - SOIC-Narrow-16
- 14-stage binary counter
- Divider function
- Oscillator function
- CMOS technology
- SOIC-Narrow-16 package
Specifications of CD4060BM Binary Counter IC - SOIC-Narrow-16
- Supply Voltage: 3.0V to 18.0V
- Number of Bits: 14
- Low Logic Voltage: 0.45V to 4.5V
- High Logic Voltage: 4.5V to 10.5V
- Input Current: 1 µA at 18V
- Output Current: 3.4 mA at high and low logic levels
- Operating Temperature Range: -55°C to 125°C
- Package: SOIC-Narrow-16
How to Use CD4060BM Binary Counter IC - SOIC-Narrow-16
- Install the IC in a compatible circuit design.
- Connect the supply voltage within the specified range.
- Use the counter, divider, or oscillator function as required.
More Info
- Suitable for digital circuits.
- Available in an SOIC-Narrow-16 package.
| Package | SOIC-Narrow-16 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -55 C° |
| Operating Temperature Max | +125 C° |
| Number of Bits | 10 bit |
| Mounting Type | SMD/SMT |
| Components - Type | Counter ICs |
