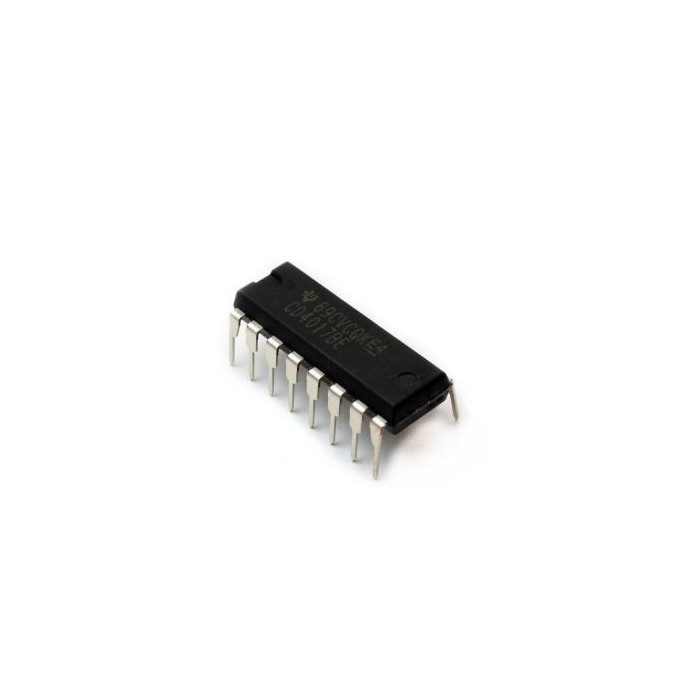

CD4017BE, Counter IC, DIP-16

The CD4017BE Decade Counter IC is a CMOS decade counter with 10 decoded outputs in a DIP-16 package. It counts clock signals and resets to zero after reaching ten. This CD4017BE IC is designed for applications that require decade counting and decoded outputs. The package type is DIP-16.

Features of CD4017BE Decade Counter IC

• 10 decoded outputs
• CMOS technology
• Decade counting function
• Automatic reset at ten
• DIP-16 package

Specifications of CD4017BE Decade Counter IC

• Supply Voltage: 3.0V to 15.0V
• Number of Bits: 5
• Low Logic Voltage: 0.45V to 4.5V
• High Logic Voltage: 4.5V to 10.5V
• Input Current: 1 µA at 15V
• Output Current: 3.4 mA at high and low logic levels
• Operating Temperature Range: -55°C to 125°C
• Package: DIP-16

How to Use CD4017BE Decade Counter IC

1. Connect the IC within the 3.0V to 15.0V supply range.
2. Apply clock signals to the counter input.
3. Use the decoded outputs as the counter advances.

More Info

• Counter IC for digital sequencing applications.
• Available in a DIP-16 package.
