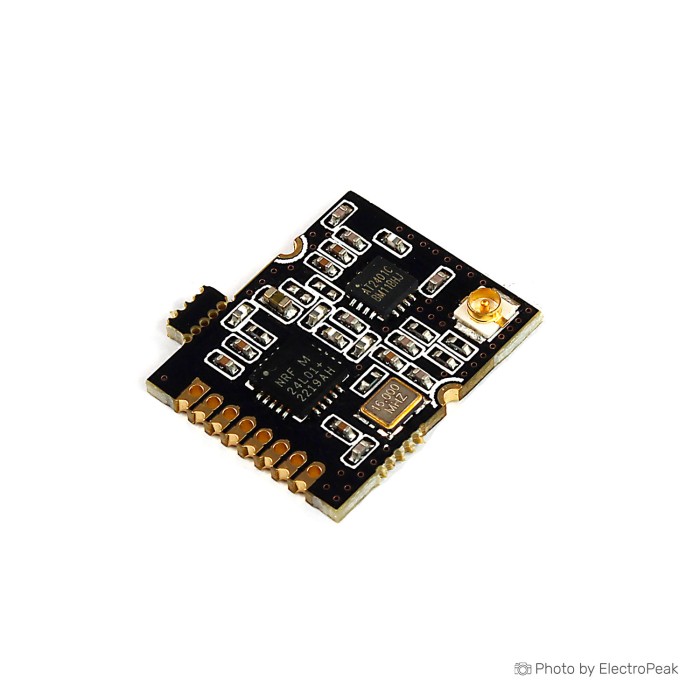

GT-24 mini NRF24L01+PA+LNA Transmission Wireless Module
$1.9500
In stock
SKU
COM-09-083
Volume discounts:
- +50 4 % $1.8800
- +100 6 % $1.8400
- +300 8 % $1.8000
- +500 9 % $1.7700
- +1000 11 % $1.7300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LoRa Ra-02 SX1278 Wireless Transciever Module Previous
The GT-24 Mini NRF24L01+PA+LNA Wireless Module is a compact 2.4GHz wireless transceiver module with SPI communication. It uses the nRF24L01+ chip and includes PA and LNA for extended transmission performance. This module is designed for electronics and robotics projects that need a small wireless data link. It supports a 2.0 to 3.3V DC input range and a 5V-tolerant signal voltage range. The module offers a maximum data rate of up to 2Mbps and a communication range of up to 1000m in open air at 250kbps. The antenna is uFL/IPEX and is not included.
Features of GT-24 Mini NRF24L01+PA+LNA Wireless Module
- nRF24L01+ chip with PA and LNA
- SPI communication interface
- 2.4GHz operating frequency
- Up to 1000m open-air range
- Ultra-low power sleep mode
- Compact SMD form factor
- uFL/IPEX antenna connection
- 5V-tolerant signal voltage
Specifications of GT-24 Mini NRF24L01+PA+LNA Wireless Module
- Input voltage: 2.0 to 3.3V DC
- Signal voltage: 2.0 to 3.3V
- 5V tolerant
- Receive current: approximately 20mA
- Transmit current: approximately 90mA
- Sleep current: approximately 30µA
- Operating frequency: 2.4GHz
- Transmit power: up to 20dBm
- Transmit power: approximately 100mW
- Receiver sensitivity: -108dBm
- Data rate: up to 2Mbps
- Communication interface: SPI
- Range: up to 1000m
- Range condition: open air at 250kbps
- Antenna: uFL/IPEX
- Antenna: not included
- Operating temperature: -40 to +85°C
- Connector type: 8-pin SMD
- Pin pitch: 1.27mm
- Dimensions: 18.3x14.5mm
How to Use GT-24 Mini NRF24L01+PA+LNA Wireless Module
- Connect the module through the SPI interface.
- Provide power within the 2.0 to 3.3V DC input range.
- Connect the uFL/IPEX antenna separately.
- Use the CE pin according to the required transmit and receive operation.
More Info
- The module includes PA and LNA for wireless transmission support.
- The antenna is not included and must be purchased separately.
- The connector is an 8-pin SMD type with 1.27mm pin pitch.
| Platform | Arduino |
|---|---|
| Interface Type | SPI |
| Operating Voltage (V) | 3.3V |
| Operating Current (mA) | 20mA, 90mA, 30µA |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 18.3x14.5mm |
| Mounting Type | SMD (Surface Mount) |
| Connector | IPEX |
| Wireless Protocol | Enhanced ShockBurst (ESB) |
| Frequency Band | 2.4GHz |
| Data transmission rate | 2Mbps |
| Encryption | None |
| RF Modulation | GFSK |
| TX Power (dBm) | 20dBm |
| Range (m) | 1km |
| SIM Slots | 0 |
| Chipset | nRF24L01+ |
| Input Voltage (V) | 2.0 – 3.3V DC |
| Antenna Type | External IPEX/IPX |
| Receiver Sensitivity | -108dBm |
