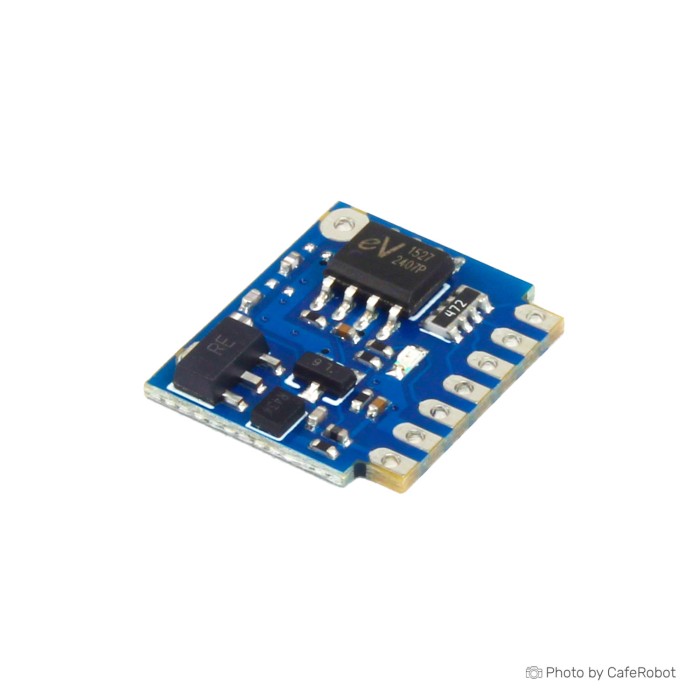

DTX1K 315/433 MHz Wireless RF Transmitter with Coding Module
SAVE
As low as $0.8000
In stock
Only %1 left
SKU
COM-09-096
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GT-24 mini NRF24L01+PA+LNA Transmission Wireless Module Previous
The DTX1K 315/433 MHz Wireless RF Transmitter Module is a compact, high-performance RF transmitter ideal for long-range communication. It operates at 315MHz or 433MHz and features a built-in EV1527 encoder for secure signal coding. This module is suitable for wireless remote control, home automation, and IoT applications.
Specifications of DTX1K 315/433 MHz Wireless RF Transmitter
-
Model: DTX1K
-
Type: RF Transmitter
-
Operating Voltage: 2 ~ 12V
-
Operating Frequency: 315MHz / 433MHz
-
Frequency Deviation: ±150KHz
-
Operating Temperature: -40℃ ~ +85℃
-
Size: 16mm × 14mm × 3mm
-
Modulation: ASK/OOK
-
Antenna Impedance: 50 Ω
-
Key Input: High-level (connect to VCC to transmit)
Performance
-
Line-of-Sight Range: Up to 280 meters at 433MHz (12V)
-
Output Power:
-
+11dBm (3.3V)
-
+16dBm (5V)
-
+20dBm (9V)
-
+22dBm (12V)
-
-
Current Consumption:
-
7mA (3.3V)
-
10mA (5V)
-
17mA (9V)
-
28mA (12V)
-
-
Standby Current: <1.0µA (KO-K3 maintains low level)
Applications
-
Wireless remote controls
-
Home automation systems
-
IoT devices
-
Security systems
-
Motorized equipment control
Development Resources of DTX1K 315/433 MHz Wireless RF Transmitter
-
Datasheet: Not available.
| Interface Type | Wireless |
|---|---|
| Operating Voltage (V) | 2 ~ 12V |
| Operating Current (mA) | 7mA (3.3V), 10mA (5V), 17mA (9V), 28mA (12V) |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 16mm × 14mm × 3mm |
| Wireless Protocol | RF (Radio Frequency) |
| Frequency Band | 315MHz / 433MHz |
| RF Modulation | ASK |
| TX Power (dBm) | +11dBm (3.3V), +16dBm (5V), +20dBm (9V), +22dBm (12V) |
| Range (m) | Up to 280 meters at 433MHz (12V) |
| Chipset | DTX1K |
| Input Voltage (V) | 2 ~ 12V |
| Application | Home automation, IoT applications, Wireless remote control |
