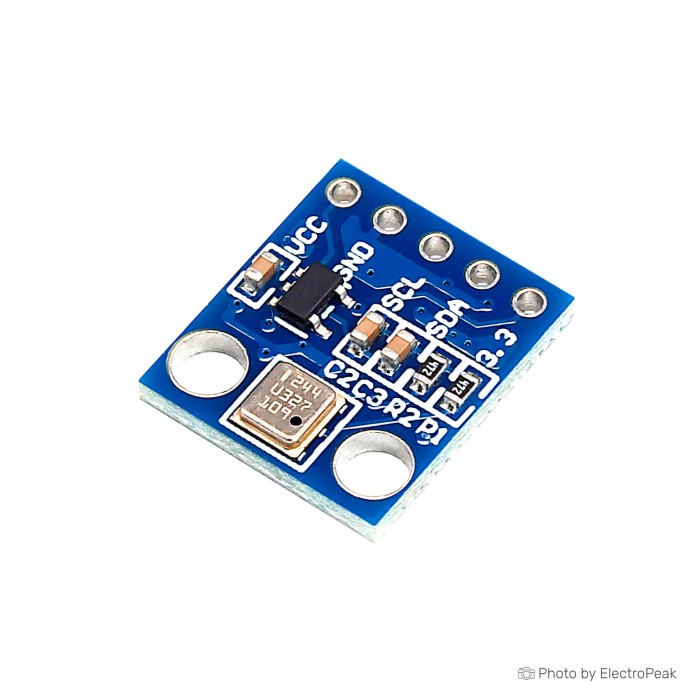

BMP180 Pressure Sensor Module- Double Hole
$0.4300
In stock
SKU
SEN-08-021
Volume discounts:
- +100 5 % $0.4100
- +1000 7 % $0.4000
- +5000 9 % $0.3900
- +10000 12 % $0.3800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GY-91 MPU9250+BMP280 10-DOF 9-Axis Gyro Compass Accelerometer Module Previous
BOSCH BMP180 Pressure Sensor Module is a high-precision barometric pressure sensor module with a small size and low energy consumption. It supports pressure measurement from 300 to 1100 hPa and provides temperature output. The module uses an LCC8 package and connects through an I2C interface. It is designed for direct connection to microcontrollers without an external clock circuit. The BMP180 Pressure Sensor Module is suitable for electronics and robotics projects that require compact pressure sensing.
Features of BOSCH BMP180 Pressure Sensor Module - I2C, LCC8
- High-precision pressure sensing
- Low energy consumption
- Temperature output
- I2C interface
- Temperature compensation
- Lead-free and RoHS compliant
- No external clock circuit required
Specifications of BOSCH BMP180 Pressure Sensor Module - I2C, LCC8
- Pressure range: 300 ~ 1100 hPa
- Elevation range: 9000 meters to -500 meters
- Power supply voltage: 1.8V ~ 3.6V (VDDA)
- Power supply voltage: 1.62V ~ 3.6V (VDDD)
- Package: LCC8
- Package type: leadless ceramic carrier package (LCC)
- Size: 3.8 X 3.6 X 0.93 mm
- Low power consumption: 5μA in standard mode
- High precision: 0.03 hPa
- High precision: 0.25 meter
- MSL 1 reaction time: 7.5 ms
- Standby current: 0.1 μA
- Interface: I2C
How to Use BOSCH BMP180 Pressure Sensor Module - I2C, LCC8
- Connect the module to a microcontroller using the I2C interface.
- Read pressure and temperature data through the connected pins.
- Use the appropriate sensor library in your microcontroller software.
More Info
- Typical applications include GPS accurate navigation.
- Typical applications include indoor and outdoor navigation.
- Typical applications include weather forecast.
- Typical applications include vertical speed indication.
- Typical applications include fan power control.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 1.62V - 3.6V |
| Operating Current (mA) | 5μA |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 3.6 x 3.8 x 0.93 mm |
| Mounting Type | SMD (Surface Mount) |
| IP Rating | None |
| Output Type | I2C |
| Accuracy | 0.03 hPa (0.25m) |
| Resolution | 0.01 hPa |
| Response Time | 7.5 ms |
| Measurement Range | 300 ~ 1100 hPa |
| Environmental Parameter | Pressure |
| Probe Type | Surface Mount |
| Chipset | BMP180 |
| Relay Output | No |
| Protocols | I2C |
| Temp Accuracy | ±2.0 °C |
