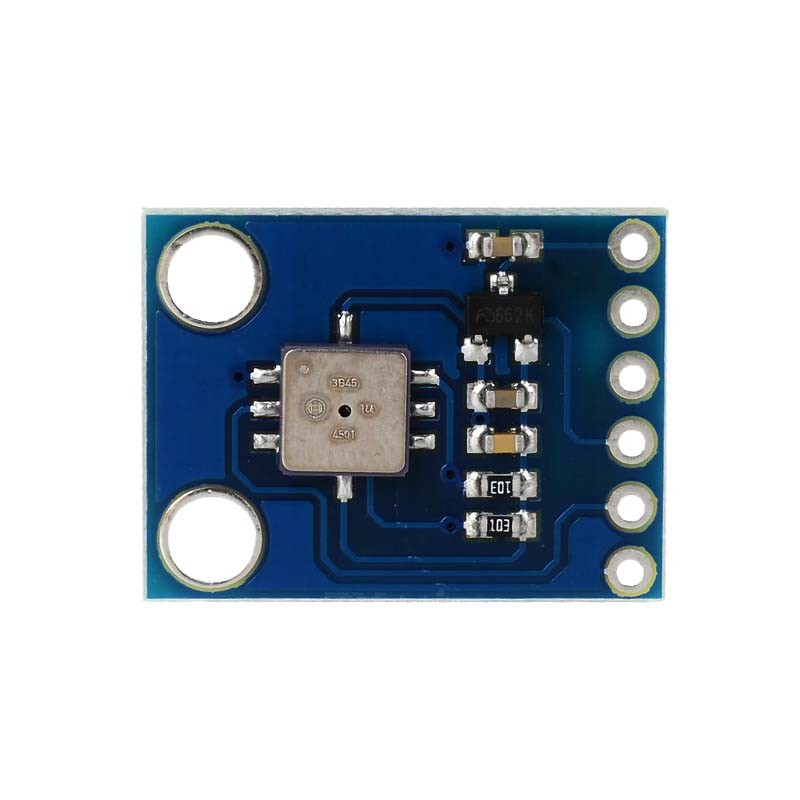

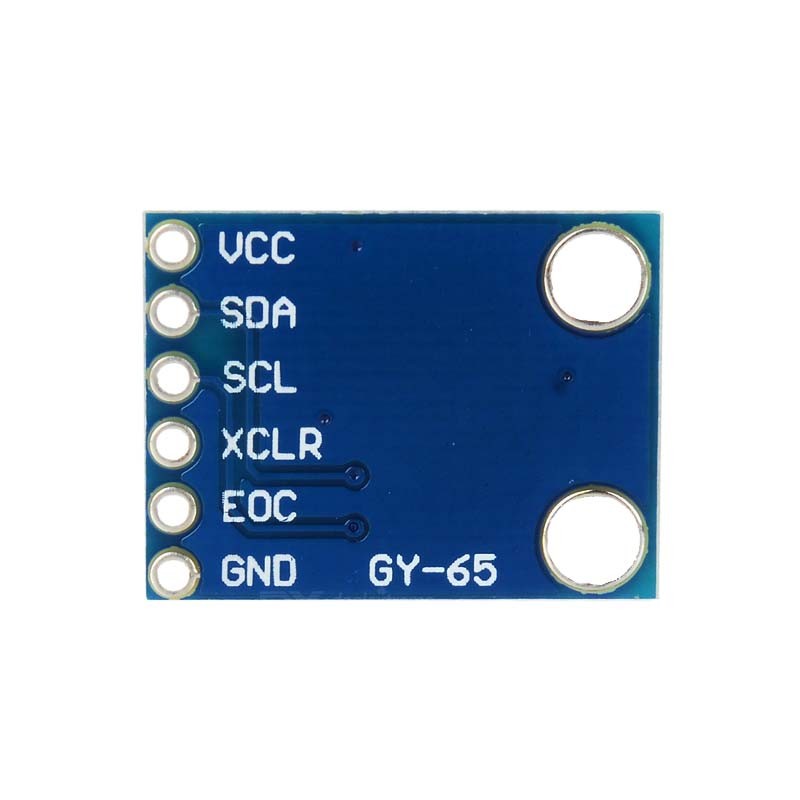

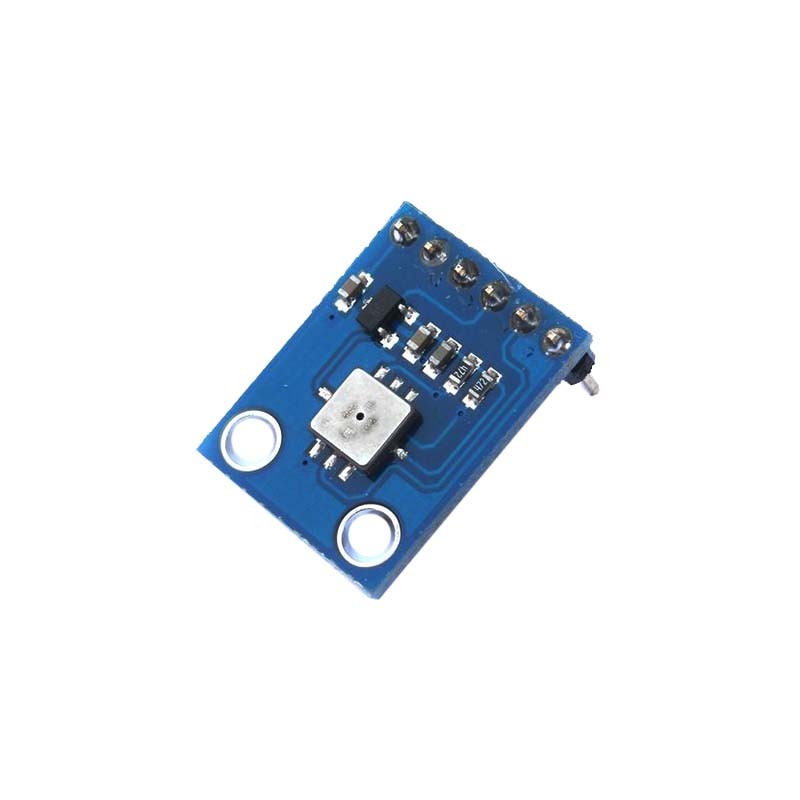

The BMP085 Barometric Pressure Module is a high-precision atmospheric pressure sensor designed for applications requiring accurate pressure and altitude measurements. Featuring an integrated AD converter, this module communicates via an I2C protocol and operates efficiently with low power consumption. It provides temperature output and compensation, ensuring accurate performance in varying conditions. The module is RoHS-compliant and ideal for altitude tracking and environmental sensing.
Specifications of BMP085 Barometric Pressure Module
-
Chip: BMP085
-
Communication Mode: I2C
-
Power Supply: 3V ~ 5V
-
Pressure Range: 300 - 1100 hPa (altitude range: 9000m to 500m)
-
Supply Voltage: 1.8V - 3.6V (VDDA), 1.62V - 3.6V (VDDD)
-
Accuracy:
-
Low power mode: 0.06 hPa (0.5m resolution)
-
High linear mode: 0.03 hPa (0.25m resolution)
-
-
Response Time: 7.5 ms
-
Standby Current: 0.1 μA
-
Package: LCC8 ceramic leadless chip carrier
-
Operating Current: 5 μA in standard mode
-
Dimensions: ---
