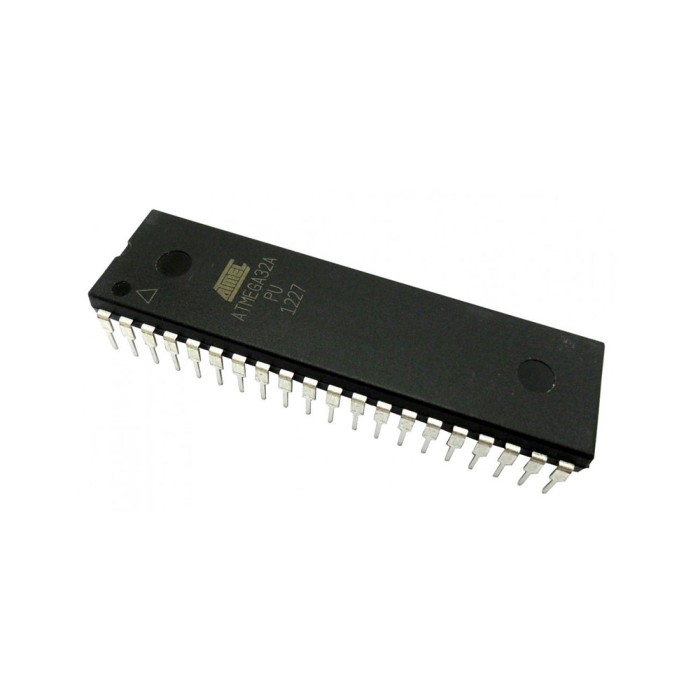

ATMEGA32A-PU IC Microcontroller (DIP)

ATmega32A-PU IC Microcontroller DIP is an AVR 8-bit microcontroller with a DIP package and a high-density feature set. It includes Flash memory, EEPROM, SRAM, ADC, timers, communication interfaces, and multiple I/O resources. The device supports static operation and programmable program protection. It is intended for electronics and robotics projects that require a compact microcontroller IC.

This ATmega32A-PU IC Microcontroller DIP combines core processing features with peripheral support in a single chip. Its specification set includes memory capacity, pin count, operating range, and communication options. The product page below lists the available technical details in a clear format.

Features of ATmega32A-PU IC Microcontroller DIP

• AVR MEGA controller series
• 8-bit core
• Static operation
• Flash memory protection lock
• Atmel QTouch support
• JTAG interface
• Programmable USART channel
• On-chip analog comparator
• Internal and external interrupt sources
• Self-programmable Flash memory
• Low-power AVR architecture
• Extended RISC architecture

Specifications of ATmega32A-PU IC Microcontroller DIP

• Controller series: AVR MEGA
• Core type: AVR
• Core size: 8-bit
• Package: DIP
• Housing shape: PDIP
• Number of pins: 40 pins
• Number of pins: 44 pins
• GPIO pins: 32 pins
• Program memory: 32 kilobytes
• Flash program memory: 32Kbytes
• EEPROM: 1 kilobyte
• EEPROM: 1024Bytes
• RAM: 2 kilobytes
• SRAM: 2Kbytes
• Internal RAM: 128 x 8-bit
• CPU speed: 20MIPS
• Maximum speed: 16MHz
• Speed levels: 0 - 16MHz
• Fully static operation: 0 Hz to 24 MHz
• Number of timers: 3
• PWM channels: 4
• ADC inputs: 8
• 8-channel 10-bit ADC
• Operating voltage: 1.8-5.5V DC
• Operating voltages: 2.7V - 5.5V
• Operating temperature: -40 to +85 C
• Instruction set: 131 instructions
• Working registers: 32 x 8
• On-chip multiplier: 2-stroke
• Write and erase cycles for Flash: 10000
• Write and erase cycles for EEPROM: 100000
• Power-on reset
• Programmable brown-out detection
• Communication protocols: I2C, SPI, UART/USART
• JTAG (IEEE std. 1149.1 compliant) interface
• Programmable serial USART
• Size: 4.83x52.58 mm

How to Use ATmega32A-PU IC Microcontroller DIP

1. Apply power within the specified operating voltage range.
2. Program the microcontroller through the available interfaces and memory resources.
3. Connect the required I/O, ADC, and communication lines for the project.

More Info

• Programmable for software security.
• Designed for DIY projects and control applications.
• Can be used as an Arduino module replacement.
• Suitable for USB AVR applications.
