Arduino Micro
$40.5000
In stock
SKU
ARD-01-041
Volume discounts:
- +10 4 % $38.9600
- +25 6 % $38.1900
- +50 8 % $37.4100
- +100 10 % $36.6400
- +300 11 % $35.8700
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Arduino Uno R3 Previous

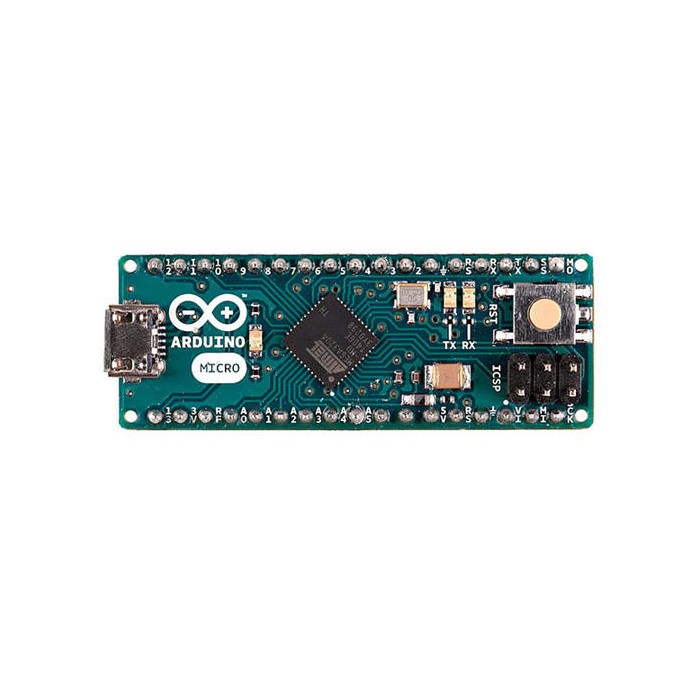

Arduino Micro is a compact Arduino Micro board based on the ATmega32U4 microcontroller. It includes a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a Reset button. The board provides 20 digital I/O pins, with 7 PWM outputs and 12 analog inputs. It supports USB communication and can be recognized by a computer as a mouse or keyboard, in addition to a CDC serial/COM port. Power can be supplied through micro USB or an external source.
The Arduino Micro is suitable for low-frequency processing projects and for connecting sensors and modules. It combines the core components needed for microcontroller use in a small board format. The board supports operation through a USB connection to a computer or through an external DC supply. Use care when selecting the input voltage to stay within the listed limits.
Features of Arduino Micro - ATmega32U4, 5V, 16MHz
- ATmega32U4 microcontroller
- 20 digital I/O pins
- 7 PWM outputs
- 12 analog inputs
- Micro USB connection
- ICSP header
- Reset button
- Internal USB communication
Specifications of Arduino Micro - ATmega32U4, 5V, 16MHz
- Microcontroller: ATmega32U4
- Operating Voltage: 5V
- Flash Memory: 32 KB
- Flash Memory Used by Bootloader: 4 KB
- SRAM: 2.5 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- Digital I/O Pins: 20
- PWM Channels: 7
- Analog Input Channels: 12
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Input Voltage: 7-12 V
- Input Voltage (Recommended): 7-9V MAX
- Input Voltage (Limit): 6-20V
- Power Consumption: 29 mA
- Length: 48 mm
- Width: 18 mm
- Weight: 7g
- LED_BUILTIN: 13
How to Use Arduino Micro - ATmega32U4, 5V, 16MHz
- Connect the board to a computer using a micro USB cable or apply an external DC supply.
- Use the digital I/O, PWM, and analog input pins for your project connections.
- Program the board through the Arduino software and upload your code.
More Info
- The board supports CDC serial/COM port communication.
- The computer may recognize the board as a mouse or keyboard through USB.
| MCU/SoC | ATmega32u4 |
|---|---|
| Product Family | Arduino |
| Architecture | AVR |
| CPU Cores | 1 |
| Clock Speed (MHz) | 16 MHz |
| Flash | 32 KB |
| SRAM | 2.5 KB |
| EEPROM | 1 KB |
| GPIO Pins | 20 |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| UART interface Pins | 1 |
| USB Ports | micro USB |
| Ethernet Support | No |
| ADC Channels | 12 |
| PWM Channels | 7 |
| Timers Count | 4 |
| Operating Voltage (V) | 5V |
| GPIO Voltage (V) | 5V |
| GPIO Current (mA) | 40 mA |
| Active Current (mA) | 29 mA |
| Wireless | No |
| Form Factor | 18 x 48 mm |
| IDE Support | Arduino |
| Input Voltage (V) | 6 to 20 V |
| Antenna Type | No |
| Bluetooth Ver. | No |
