Arduino GIGA (R1 WIFI) Display Shield with Touch - ASX00039
$119.0000
In stock
SKU
ARD-02-070
Volume discounts:
- +5 4 % $114.1200
- +10 6 % $111.6700
- +25 8 % $109.2300
- +50 10 % $106.7900
- +100 12 % $104.3500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

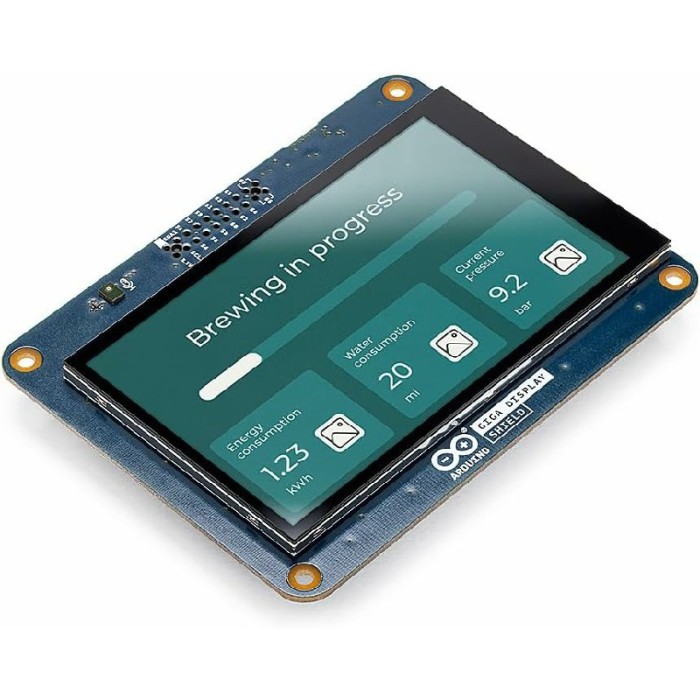

The Arduino GIGA Display Shield is a 3.97-inch touchscreen display for Arduino GIGA R1 WiFi. It features a 480x800 pixel display with support for 16.7 million colors. The shield includes a digital microphone, a 6-axis IMU sensor, and an RGB LED. It is designed to mount on the Arduino GIGA R1 WiFi board.
With the 480 MHz GIGA R1 WiFi microcontroller, this display shield supports advanced user interfaces, interactive 3D animations, and camera feed display. It supports LVGL, GFX, and ArduinoGraphics libraries. The Arduino GIGA Display Shield combines touch input, sensing, and display functions in one module.
Features of Arduino GIGA Display Shield with Touch - 3.97-Inch, 480x800, ASX00039
- 3.97-inch touchscreen display
- 480x800 pixel resolution
- 16.7 million color support
- Five-point touch and gesture recognition
- I2C display interface
- MP34DT06JTR digital microphone
- BMI270 6-axis IMU sensor
- Arducam®-compatible camera connector
- One RGB LED controlled via I2C
Specifications of Arduino GIGA Display Shield with Touch - 3.97-Inch, 480x800, ASX00039
- Display: 3.97-inch
- Resolution: 480x800 pixels
- Color support: 16.7 million colors
- Touch mode: Five-point touch and gesture recognition
- Interface: I2C
- Digital microphone: MP34DT06JTR
- Microphone type: Low-power, omnidirectional MEMS sensor
- IMU sensor: BMI270
- IMU function: Precise acceleration and angular rate measurement with motion detection
- Camera support: Camera connector compatible with Arducam®
- LED: One RGB LED
- LED control: Controlled via I2C
- Circuit operating voltage: 3.3V
- Dimensions: 106mm x 80mm
How to Use Arduino GIGA Display Shield with Touch - 3.97-Inch, 480x800, ASX00039
- Mount the shield on the Arduino GIGA R1 WiFi board.
- Connect and power the board at 3.3V.
- Use supported graphics libraries such as LVGL, GFX, or ArduinoGraphics.
More Info
- Designed for Arduino GIGA R1 WiFi
- Supports camera feed display
| Model | ASX00039 |
|---|---|
| Platform | Arduino GIGA R1 WiFi |
| Display Size | 3.97 inch |
| Display Size Range | 3.5 inch to 6.9 inch |
| Display Resolution | 480x800 pixels |
| Display Driver | ST7701S |
| Display Interface | Shield, I2C |
| Panle Type | IPS |
| Display Color Type | Full Color |
| Touchscreen Type | Capacitive |
| Backlight Type | White LED |
| Operating Voltage (V) | 3.3V |
