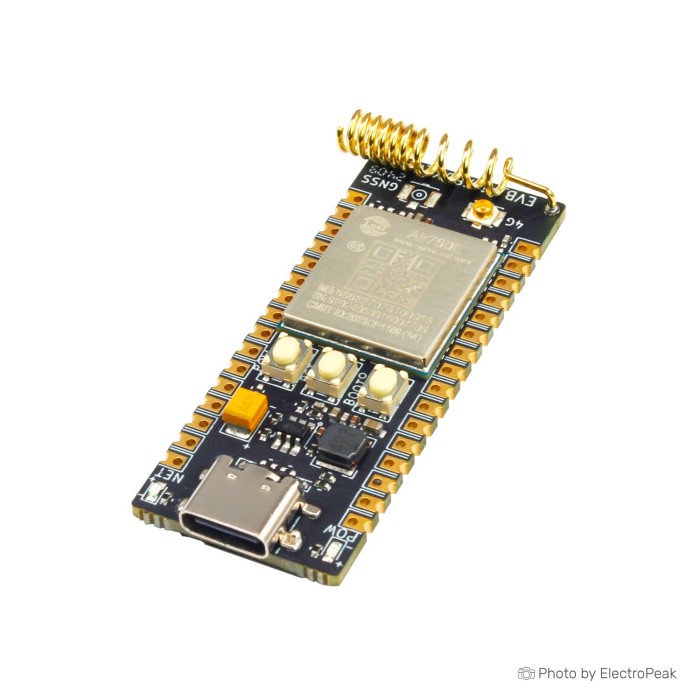

Air780E Development Board 4G Cat.1
$22.9500
In stock
SKU
DEV-08-003
Volume discounts:
- +25 4 % $22.1300
- +50 5 % $21.7200
- +100 7 % $21.3200
- +300 9 % $20.9100
- +500 11 % $20.5000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Maix Bit AI Development Board RISC-V K210 IoT Previous
Introducing the Air780E Development Board 4G Cat.1, the perfect solution for developers looking to create high-speed and reliable IoT devices. Powered by a 4G Cat.1 LTE modem, this development board offers lightning-fast connectivity and a stable network connection, making it ideal for a variety of industrial applications. With a compact design and easy-to-use interface, the Air780E is the perfect choice for those looking to bring their IoT projects to life.
Equipped with a powerful ARM Cortex-A7 processor, the Air780E can handle complex tasks with ease, making it a versatile choice for a wide range of applications. Its compact size and low power consumption make it ideal for use in remote locations, while its 4G Cat.1 LTE modem ensures a reliable and fast connection at all times. With the Air780E Development Board, developers can easily create innovative and cutting-edge IoT devices that meet the demands of today's tech-savvy consumers. Experience the power and efficiency of the Air780E Development Board 4G Cat.1 and take your IoT projects to the next level.
Specification of Air780E Development Board 4G Cat.1:
- LTE Cat.1 bis communication module;
- Adopts the core shift EC618 platform and supports LTE 3GPP Rel.13 technology;
- 4G full Netcom module that can be adapted to different operators and products, ensuring maximum flexibility in product design.
- Supports dual SIM single standby;
- Supports SPI LCD;
- Supports SPI Camera;
- Supports USB 2.0;
- Supports PSM digital voice interface;
- Supports a variety of development methods, such as USB Internet access, standard AT, LuatOS, CSDK secondary development, etc., and can provide professional and timely online technical support.
- Built-in rich network protocols, integrates multiple industry-standard interfaces, and supports a variety of driver and software functions (such as Windows 7/8/8.1/10, Linux, Android and other operating systems under USB drivers, etc.), greatly expanded its application scope in the M2M field, such as CPE, router, data Cards, tablets, automotive, security, industrial PDAs etc.
| Platform | Linux, Windows, Android |
|---|---|
| Interface Type | USB, UART, I2C, SPI |
| Operating Voltage (V) | 5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 52x21 mm |
| Connector | USB |
| Wireless Protocol | GSM/GPRS/4G |
| Frequency Band | 4G LTE |
| Data transmission rate | 10 Mbps (DL) / 5 Mbps (UL) |
| TX Power (dBm) | 23dBm |
| SIM Slots | Dual SIM |
| Chipset | ARM Cortex-A7, EC618 |
| Modes | PSM |
| Input Voltage (V) | 5V |
| Antenna Type | External IPEX/IPX |
| Application | Automation, Security, IoT, Automotive devices, Industrial devices, M2M |
